Rear Shock MX362 KSR50/80

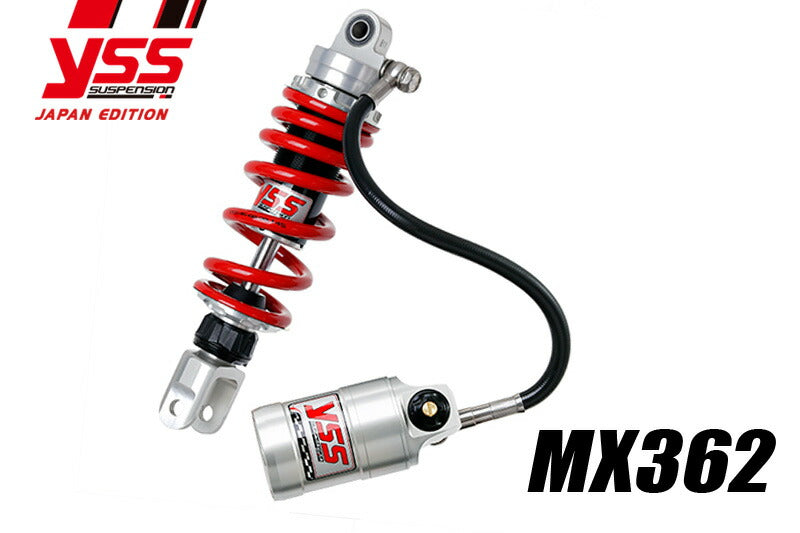

[PMC 117-3210904 YSS Rear Shock MX362 KSR50/80]
・The all-billet body and reservoir tank are connected by a mesh hose, allowing for flexible mounting of the reservoir tank.
・Full-spec model equipped with a fully adjustable mechanism.
・Equipped with adjustment mechanisms for compression damping (1 system), rebound damping (1 system), and spring preload.
・The large-capacity reservoir tank prevents cavitation and increases oil volume, providing excellent heat dissipation.
・The body is perfectly matched for lightweight minimotos, and the reduced diameter of the spindle rod decreases friction.
Specifications:
・Type: MX362
・Spring: ID46-60 90N/mm L145
・Piston diameter: φ45mm
・Spindle rod: φ16mm
Compatible models:
・KAWASAKI KSR50/80 '90-'99
Precautions:
*There is no ride height adjustment function.
Notes on images:
*Photos are representative examples of the model.
*Colors, shapes, set contents, and other specifications may differ.
*Please check before purchasing.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
