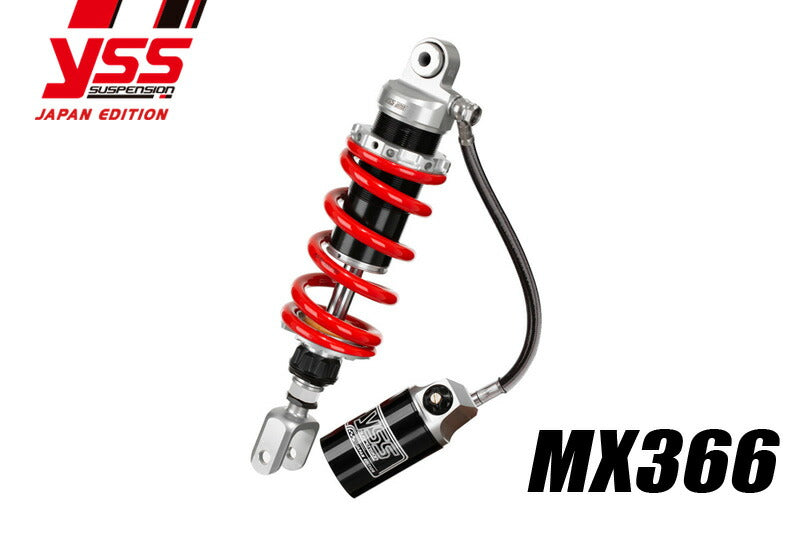

Rear Shock MX366 KLX230

[PMC YSS Rear Shock MX366 KLX230 (Part Number 117-3310020)]
・The all-billet body and reservoir tank are connected by a mesh hose, allowing for flexible mounting of the reservoir tank.
・Full-spec model equipped with a full adjustable mechanism.
・Equipped with adjustment mechanisms for compression damping (single system), rebound damping (single system), spring preload, and ride height.
・The large-capacity reservoir tank prevents cavitation, increases oil capacity, and provides excellent heat dissipation.
・The body is perfectly matched for vehicles with compact designs, and provides rigid support for the suspension. It is suitable for a wide range of uses, from street to racing.
Specifications:
・Type: MX366
・Spring: ID53-56 54N/mm L245
・Shock Length: 460 (460-470)
・Piston Diameter: φ36mm
・Spindle Rod: φ16mm
Compatible models:
・KAWASAKI KLX230 '19
Important notes regarding images:
*The photo is a representative example of the model.
*Images are for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
