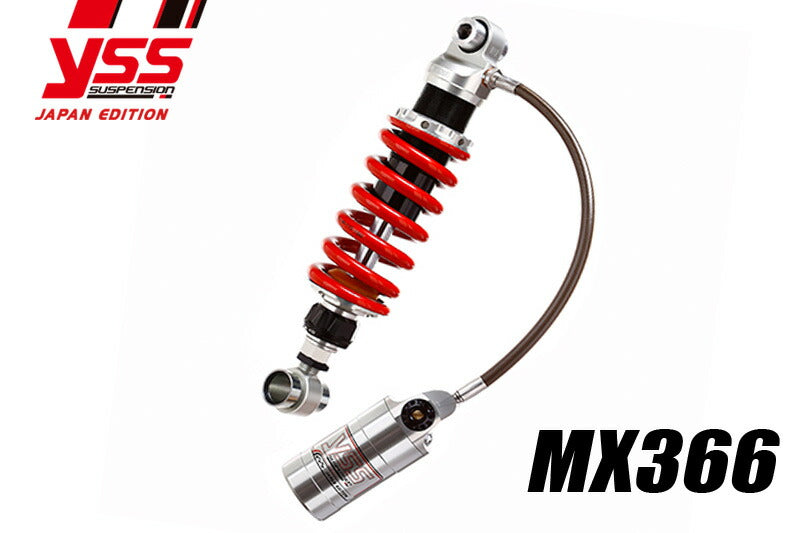

Rear Shock MX366 RZ250/R/RR

【PMC 117-3312001 YSS Rear Shock MX366 RZ250/R/RR】
・All-billet body and reservoir tank are connected by a mesh hose, allowing for flexible mounting positions of the reservoir tank.
・Full-spec model equipped with a fully adjustable mechanism.
・Equipped with adjustment mechanisms for compression damping (1 system), rebound damping (1 system), spring preload, and ride height.
・The large capacity reservoir tank prevents cavitation and increases oil volume, providing excellent heat dissipation.
・The body is a perfect match for vehicles with compact designs, and it has the rigidity to firmly support the rear end. It can be used for a wide range of applications from street to racing.
Specifications:
・Type: MX366
・Piston diameter: φ36mm
・Spindle rod: φ16mm
Compatible models:
・YAMAHA RZ250/R/RR '83-'88
Image notes:
*Photos are representative examples of the model.
*Images are for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
