Rear shock MX366 GSF1200(GV75A)

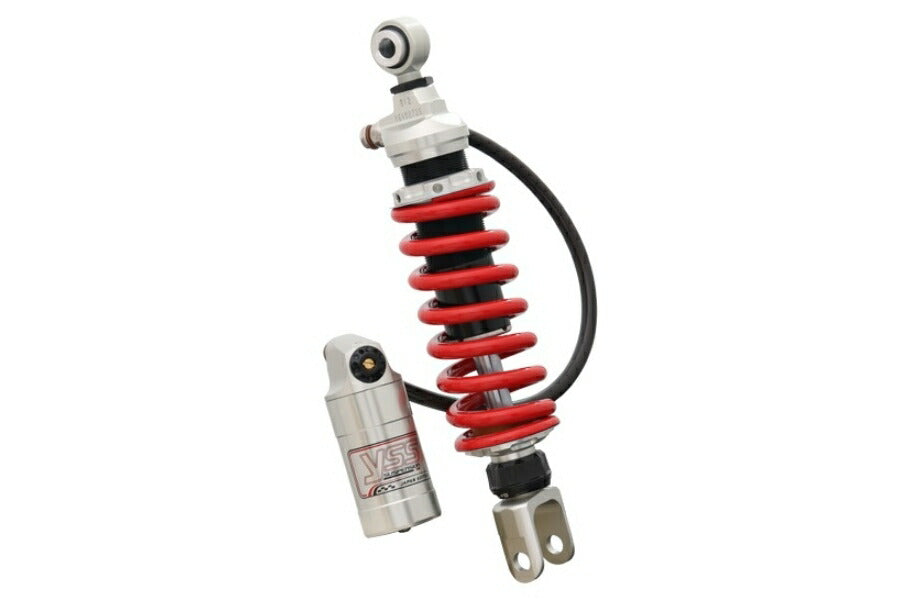

[PMC 117-3313300 YSS Rear Shock MX366 GSF1200 (GV75A)]
・A full-spec model equipped with a fully adjustable mechanism, connecting the all-billet body and the reserve tank with a mesh hose, allowing the mounting position of the reserve tank to be freely changed.
・Equipped with independent high-speed/low-speed compression damping, independent rebound damping, threaded spring preload, and ride height adjustment mechanisms.
・The large-capacity reserve tank prevents cavitation and increases oil volume, providing high heat dissipation.
・Designed with racing use in mind, it features a large-capacity, high-rigidity big body that overcomes even unrealistically harsh conditions.
Specifications:
・Type: MX366
・Spring: ID46 100N/mm L150
・Shock total length: 305 (300-310)
・Piston diameter: φ36mm
・Spindle rod: φ16mm
Compatible models:
・SUZUKI GSF1200 (GV75A) (Bandit not applicable) '95-'00
Notes:
*Ride height adjustment is not equipped.
Image notes:
*Photos are representative examples of the model.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
