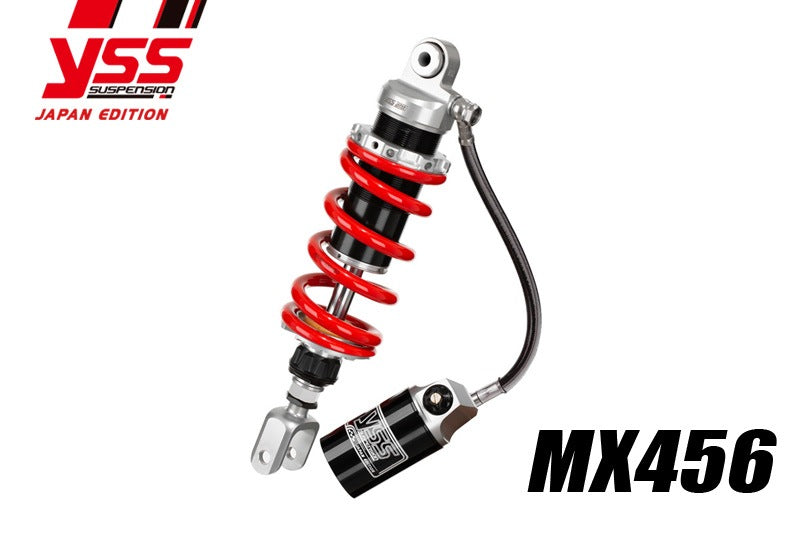

Rear Shock MX456 BROS

【PMC 117-3511011 YSS Rear Shock MX456 BROS】
・A full-spec model featuring a full adjustable mechanism, with the all-billet body and reservoir tank connected by a mesh hose, allowing for flexible changes to the reservoir tank's mounting position.
・Equipped with adjustment mechanisms for low-speed compression damping (1 system), rebound damping (1 system), spring preload, and ride height.
・The large-capacity reservoir tank prevents cavitation and increases oil volume, providing excellent heat dissipation.
・Designed with racing use in mind, this large-capacity, high-rigidity big body overcomes even unrealistic harsh conditions.
Specifications:
・Type: MX456
・Spring: ID56 175N/mm L175
・Piston diameter: φ45
・Spindle rod: φ16
・Mount: Bearing
Compatible models:
・HONDA BROS '87-'89
Important notes regarding images:
*Photos are representative examples of the model.
*Images are for illustration purposes, and the design and specifications of the products shown may change without notice. Thank you for your understanding.
