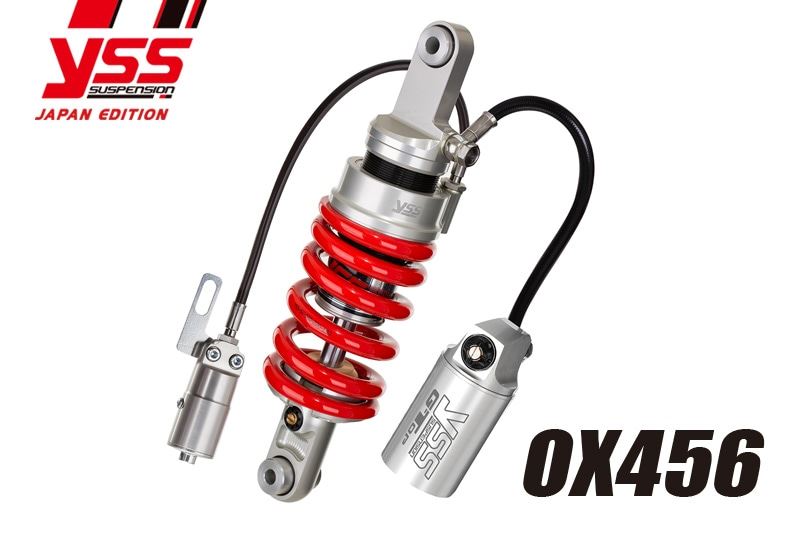

Rear Suspension X-ADV750 OX456-TRC with HPA

【PMC 117-3511226R Rear Suspension X-ADV750 OX456-TRC with HPA Motorcycle Parts Chassis Suspension】
■Product Description
This is a full-spec model featuring an all-billet body and a reserve tank connected by a mesh hose, allowing for flexible mounting of the reserve tank. It also comes equipped with a fully adjustable mechanism.
It features a single system for low-speed compression damping, a single system for rebound damping, and a spring preload adjustment mechanism.
The large-capacity reserve tank prevents cavitation and increases oil capacity for high heat dissipation.
Designed with racing use in mind, this large-capacity, high-rigidity big body overcomes even extreme conditions.
With hydraulic preload adjuster

■Compatible models
HONDA X-ADV750 '17-'20

■Specifications
Spring: ID56 160-220N/mm L130
Shock overall length: 300
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Other Notes
*No ride height adjustment function

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
