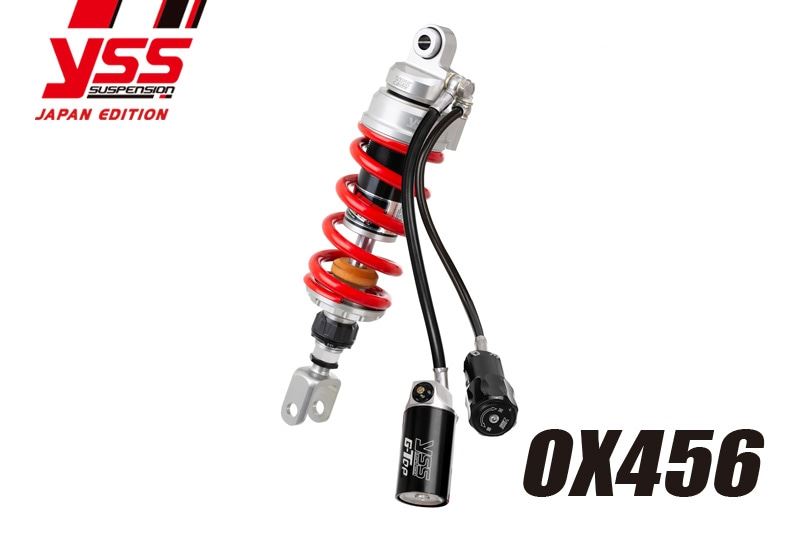

Rear Suspension T-MAX 560 OX456-TRC

【PMC 117-3512240R Rear Suspension T-MAX 560 OX456-TRC Motorcycle Parts Suspension】
■Product Description
This full-spec model features an all-billet body and a remote reservoir connected by a mesh hose, allowing for flexible mounting positions of the reservoir, and is equipped with full adjustable mechanisms.
It features adjustments for low-speed compression damping (1 system), rebound damping (1 system), spring preload, and ride height.
The large-capacity remote reservoir prevents cavitation and increases oil volume, providing excellent heat dissipation.
Designed with racing use in mind, it's a large-capacity, high-rigidity big body that overcomes even extraordinarily harsh conditions.

■Compatible Models
YAMAHA T-MAX 560 '21-

■Specifications
Spring: ID56 100N/mm L150
Shock length: 330 (325-335) mm
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Notes
*Images are for illustration purposes only. Products with different sizes and colors may be included.
*Product design and specifications are subject to change without notice. Thank you for your understanding.
