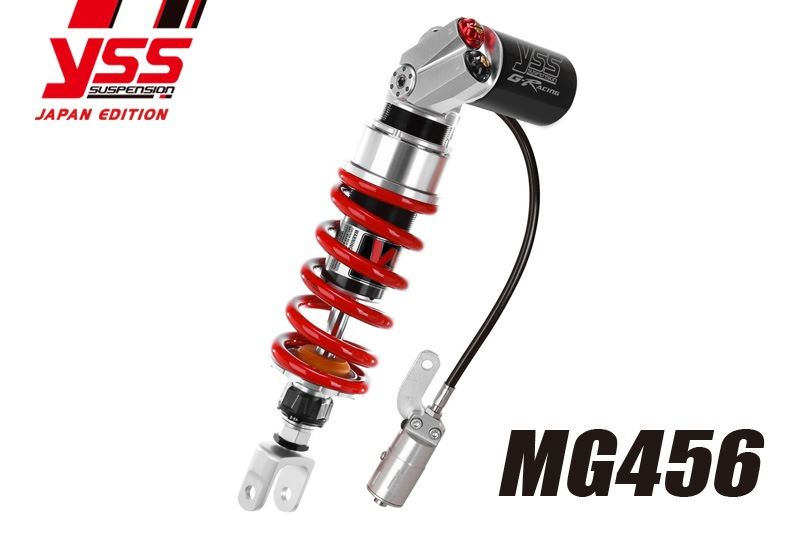

Rear suspension ZX-10R MG456 with HPA

【PMC 117-5510200R Rear Suspension ZX-10R MG456 with HPA Motorcycle Parts Footpeg Suspension】
■Product Description
A top-end racing-spec model that pursues skilled beauty and high performance, equipped with a fully adjustable mechanism in an inorganic-looking all-billet body.
Equipped with independent adjustment mechanisms for high/low-speed compression damping (2 systems), rebound damping (1 system), and spring preload.
The large-capacity reservoir tank prevents cavitation and increases oil capacity, providing high heat dissipation.
Designed with racing use in mind, it is a large-capacity, high-rigidity big body that overcomes even unrealistically harsh conditions.
Hydraulic spring preload adjuster specification

■Compatible Models
KAWASAKI ZX-10R '08-'10

■Specifications
Spring: ID56 100N/mm L150
Shock overall length: 335mm
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Other Notes
*No ride height adjustment function

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
