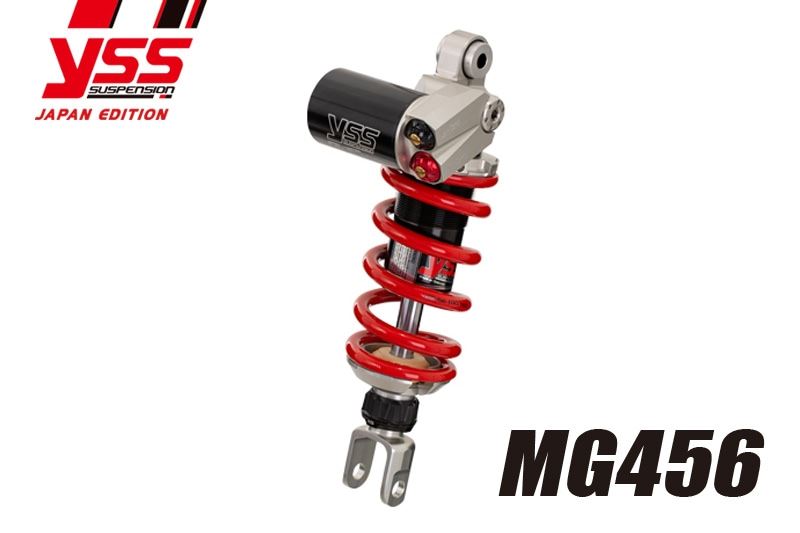

Rear Suspension YZF-R6 MG456

【PMC 117-5512215 Rear Suspension YZF-R6 MG456 Motorcycle Parts Chassis Suspension】
■Product Description
A top-end, racing-spec model that pursues skilled aesthetics and high performance, featuring a full-adjustable mechanism within an inorganic-looking all-billet body.
Equipped with adjustment mechanisms for high/low-speed compression damping (2 systems), rebound damping (1 system), and spring preload.
The large-capacity reservoir tank prevents cavitation and increases oil volume, providing high heat dissipation.
Designed with racing use in mind, this large-capacity, high-rigidity big body overcomes even extraordinarily harsh conditions.

■Compatible Models
YAMAHA YZF-R6 '08-'15

■Specifications
Spring: ID56 100N/mm L150
Shock Length: 295mm
Piston Outer Diameter: φ45
Shaft Outer Diameter: φ16
Mount: Bearing

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
