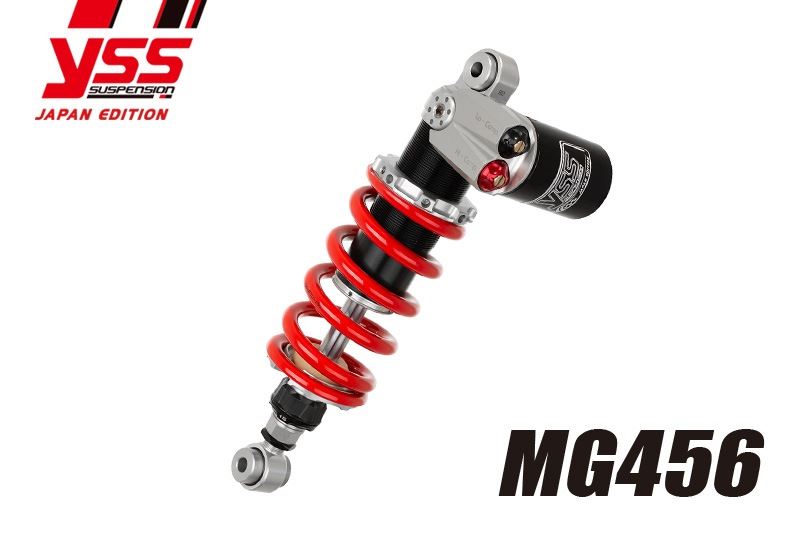

Rear Suspension GSX-R1000 MG456

【PMC 117-5513318 Rear Suspension GSX-R1000 MG456 Motorcycle Parts Chassis Suspension】
■Product Description
This top-end model is a racing-spec suspension that pursues skilled beauty and high performance, equipped with a fully adjustable mechanism in an inorganic-looking all-billet body.
It features adjustment mechanisms for high/low-speed compression damping (two systems), rebound damping (one system), and spring preload.
The large-capacity reservoir tank prevents cavitation and increases oil volume, exhibiting high heat dissipation.
Designed with racing use in mind, it is a large-capacity, high-rigidity big body that overcomes extreme, unrealistic conditions.

■Compatible Models
HONDA GSX-R1000 '05-'06

■Specifications
Spring: ID56 95N/mm L165
Shock overall length: 325 (320-330)
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
