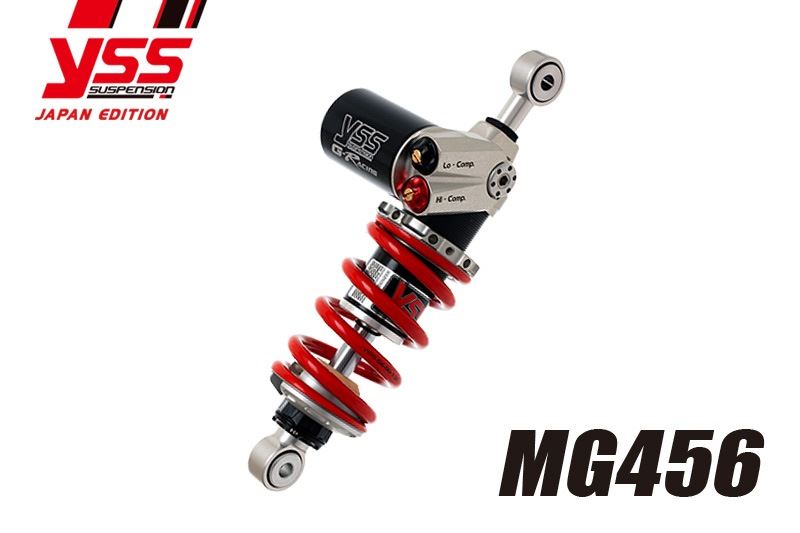

Rear Suspension 848 EVO MG456

[PMC 117-5516318 Rear Suspension 848 EVO MG456 Motorcycle Parts Suspension]

■ Product Description

This is a top-end racing-spec model that pursues skilled beauty and high performance, equipped with a fully adjustable mechanism in an inorganic-looking all-billet body.

It is equipped with individual adjustment mechanisms for high/low speed compression damping (two systems), rebound damping (one system), and spring preload.

The large-capacity reservoir tank prevents cavitation, increases oil volume, and provides excellent heat dissipation.

Designed with racing use in mind, this large-capacity, high-rigidity big body overcomes even extremely harsh conditions.

■ Compatible Models

DUCATI 848 EVO '08-'10

■ Specifications

Spring: ID56 80N/mmL130

Shock length: 295 (295-305)

Piston outer diameter: φ45

Shaft outer diameter: φ16

■ Notes

* Images are for illustration purposes only. Includes products of different sizes and colors.

* Product design and specifications may change without prior notice. Thank you for your understanding.
