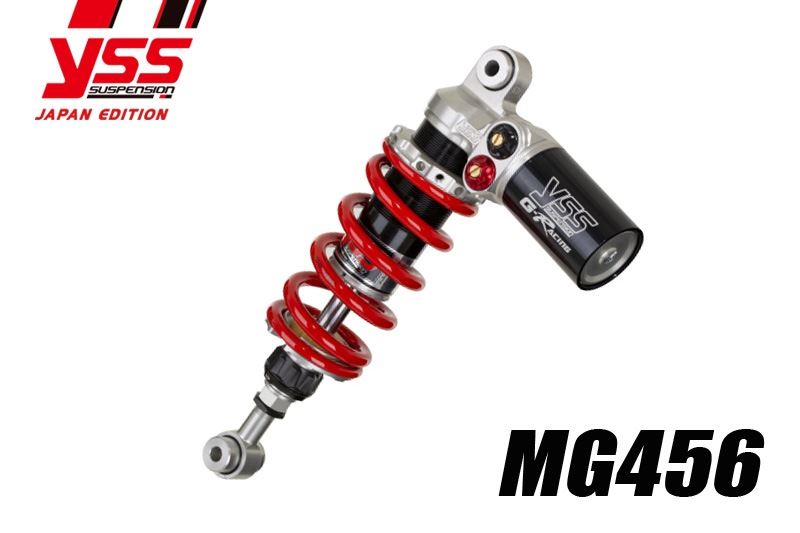

Rear suspension Dorsoduro 750 MG456

【PMC 117-5519214 Rear Suspension Dorsoduro 750 MG456 Motorcycle Parts Suspension 】
■Product Description
A top-end racing-spec model that pursues skilled beauty and high performance, equipped with a fully adjustable mechanism in an inorganic-looking all-billet body.
Equipped with adjustment mechanisms for high/low-speed compression damping (2 systems), rebound damping (1 system), and spring preload.
The large-capacity reservoir tank prevents cavitation and increases oil volume to provide excellent heat dissipation.
Designed with racing use in mind, this large-capacity, high-rigidity big body overcomes even extraordinarily harsh conditions.

■Compatible Models
APRILIA DORSODURO 750 '08-'10

■Specifications
Spring: ID56 200N/mm 150L
Shock overall length: 325 (325-335)
Piston outer diameter: φ45
Shaft outer diameter: φ16

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications may change without notice. Please understand.
