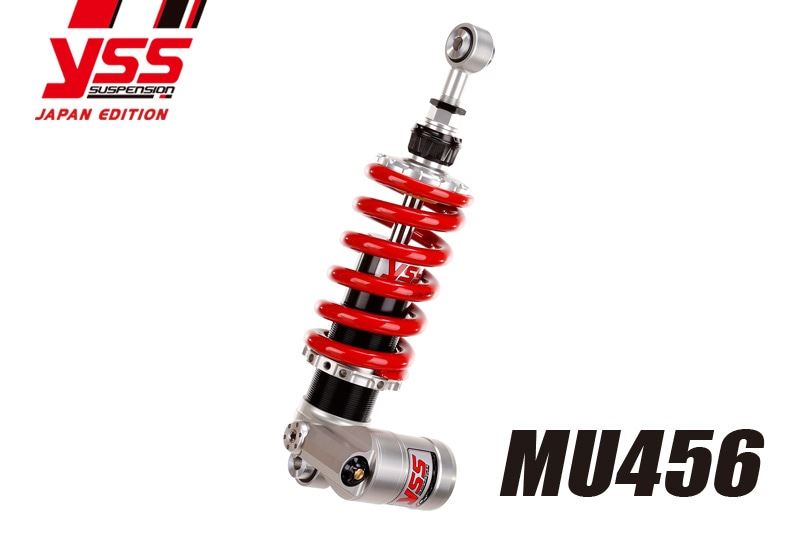

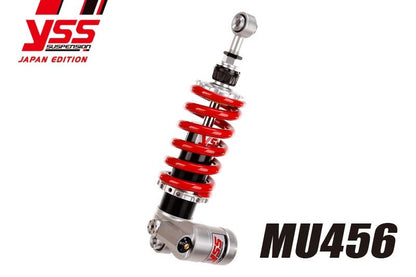

Rear Suspension CB650F/CB650R/CBR650F/CBR650R MU456-TRC

【PMC 117-8511211 Rear Suspension CB650F/CB650R/CBR650F/CBR650R MU456-TRC Motorcycle Parts, Chassis, Suspension】
■Product Description
A full-spec model that pursues aesthetic craftsmanship and high performance, featuring a full adjustable mechanism on an inorganic-looking all-billet body.
The reserve tank is located at the bottom of the shock.
Equipped with independent adjustment mechanisms for low-speed compression damping, rebound damping, and spring preload.
The large-capacity reserve tank prevents cavitation and increases oil capacity for excellent heat dissipation.
Designed with racing use in mind, it features a large-capacity, high-rigidity big body that can overcome extremely harsh conditions.

■Compatible Models
HONDA CB650F '14-'18
CB650R '14-'16
CBR650F '14-'16
CBR650R '16

■Specifications
Spring: ID56 160N/mm L150
Overall shock length: 325 (320-330)
Piston outer diameter: φ45
Shaft outer diameter: φ16
Mount: Bearing

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
