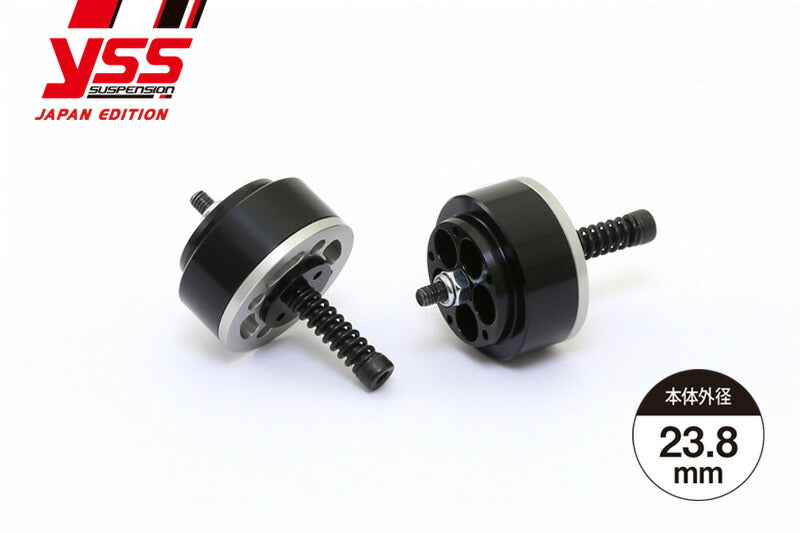

PD Fork Bubble Body Outer Diameter 23.8mm

[PMC 118-4002 YSS PD Fork Valve, Body Outer Diameter 23.8mm]
・This is an inner valve that provides the "suppleness" and "firmness" of a cartridge fork to front forks that do not have damping adjustment functionality on the damper rod.
・If the outer and inner diameters of your fork spring match the outer diameter of the YSS PD valve, it can be used on any vehicle by setting it between the fork spring and the damper rod.
・The preload of the fork spring will increase by the height of the YSS PD valve body.
・Depending on the top shape of the piston rod, it may be necessary to fabricate an adapter or similar.
Specifications:
・Set Outer Diameter: 16.5mm
・Body Outer Diameter: 23.8mm
・Set Height: 2.0mm
・Body Height: 14.0mm
Important notes on images:
*The photo is for illustrative purposes only.
*Specifications may differ.
*The image is for illustration purposes, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
