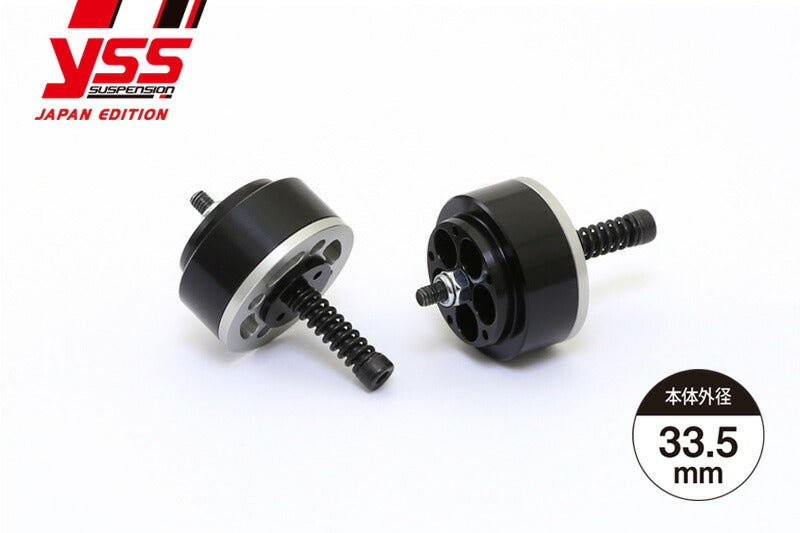

PD Fork Bubble body outer diameter 33.5mm

[PMC YSS PD Fork Valve Main Unit Outer Diameter 33.5mm (118-4006)]
・This inner valve provides "flexibility" and "firmness" similar to a cartridge fork for front forks that do not have damping adjustment functions on the damper rod.
・If the outer diameter to inner diameter size of the fork spring matches the outer diameter of the YSS PD valve, it can be used regardless of the vehicle type by setting it between the fork spring and the damper rod.
・The preload of the fork spring will increase by the height of the YSS PD valve body.
・Depending on the top shape of the piston rod, an adapter may need to be custom-made.
Specifications:
・Set Outer Diameter: 26.0mm
・Main Unit Outer Diameter: 33.5mm
・Set Height: 4.0mm
・Main Unit Height: 14.5mm
Important Notes Regarding Images:
*The photo is for illustrative purposes only.
*Specifications may differ.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
