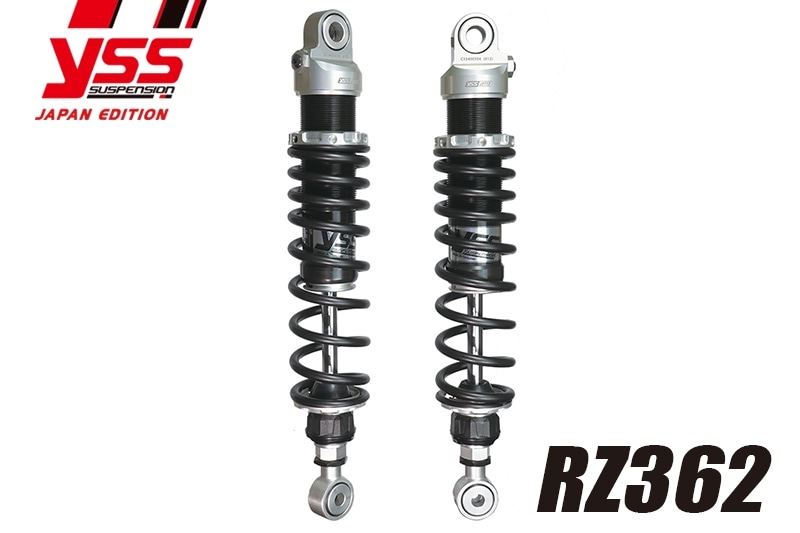

Rear Suspension CB400F RZ362 Silver Body Silver x Black 2-piece Set

【PMC 119-4604200 Rear Suspension CB400F RZ362 Silver Body Silver x Black 2-piece Set Motorcycle Parts Suspension】
■Product Description
An all-around model with a simple appearance yet equipped with the adjustment functions necessary for light riding.
Equipped with 1-way rebound damping force, spring preload, and ride height adjustment mechanism.
Reducing the outer diameter of the shaft decreases rod volume and sliding area, increasing oil capacity and reducing friction loss.
It is suitable for street riding as well as sport riding on winding roads.

■Compatible Models
HONDA CB400F '74-'77-

■Specifications
Free length: 320 (320-330) mm
Piston outer diameter: φ36
Shaft outer diameter: φ12
Mount: Bearing mount
Color: Silver x Black
Quantity: 2-piece set

■Other Notes
* The upper mount is rubber.
* The chain case cannot be used as it will interfere.
* The rear wheel must be removed for installation.
* Can be used with the standard 530 chain line.
* Depending on the sprocket size, the suspension and chain may interfere.
* The image is for a different model. The actual product's mount shape may differ.
* Upper mount I-Type, lower mount F-Type.

■Notes
* The image is for illustration purposes only. It includes products with different sizes and colors.
* Product designs and specifications may change without notice. Thank you for your understanding.
