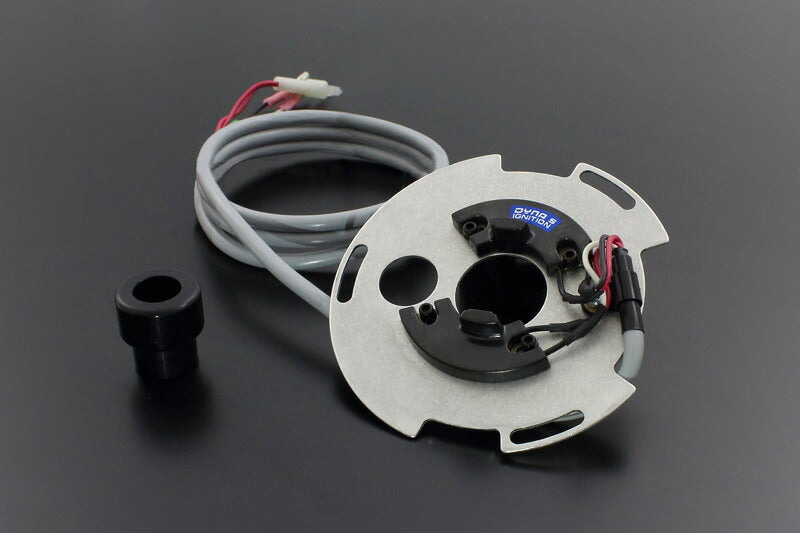

Dyna S Ignition Kit GS750/1000/1100 (KD)

[PMC 11DS3-1 Dyna S Ignition Kit GS750/1000/1100(KD)]
・This ignition system upgrades point ignition, which requires periodic gap and ignition timing adjustments, to a maintenance-free transistor ignition system.
・With magnetic acceleration, it accurately and reliably controls ignition timing from idling to high RPMs, improving starting performance.
・The slotted holes in the base plate allow for adjustment of standard ignition timing, as well as arbitrary changes to the timing.
・By making the sensor mounting holes slotted, fine adjustment of the ignition timing controlled by each sensor is possible.
・Each model is custom-designed. The compact size fits within the point cover and allows for bolt-on installation.
[NOTE]

・When installing on older vehicles, please check the condition of the charging system, main harness, etc., beforehand. Malfunctions in these parts may cause this product to fail.
・This product does not have a rev limiter function. We recommend using it in conjunction with the DYNATEK DRL300 rev limiter.
・When using, the standard advance device (mechanical advancer) is required. This product cannot be used with DYNA3 and DBR (Dyna Ignition Booster).
・This product does not have a pulse signal output function. For vehicles where the tachometer signal wire is output from the standard igniter, the tachometer will no longer operate.
Compatible with:
・SUZUKI GS750/1000/1100(KD)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware of this.
