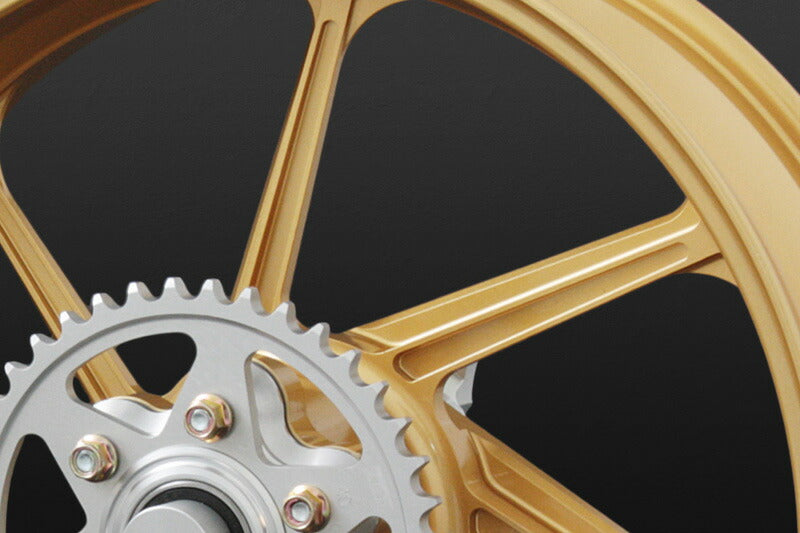

MATRIX Forged Aluminum Rear Wheel Gold 4.50-18 1pc CB750/900/1100F

【PMC 121-745/4 SWORD MATRIX Aluminum Forged Wheel Rear Gold 4.50-18 1 pc. CB750/900/1100F】
【Commitment to SWORD】

・SWORD is committed not only to the "lightweight and strong" properties required of wheels but also to "sculptural beauty," achieved through state-of-the-art 3D-CAD technology.
・This digital planning design achieves a high-level fusion of all conflicting requirements, such as sufficient strength and appropriate elasticity, while reducing weight to the absolute limit.
・Furthermore, the manufacturing process employs 100% ALL-Billet material, utilizing advanced cutting technology by CNC machining centers.
【Features of Matrix】

・Adopts a spoke design that is innovative yet retains a somewhat nostalgic feel.
・Achieves approximately 10% weight reduction compared to Evolution and Heritage models, by maximizing aluminum forging technology.
・Adopts rim sizes that prioritize tire profiles. (Front 2.75 / Rear 4.50)
・Recommended tire sizes (Front 110/80ZR18, Rear 160/60ZR18)
・Chain line is designed with a +6mm offset.
Detailed description:
【Spoke Pattern】

・High strength and reliability achieved despite being lightweight.
・3 types of spoke patterns.
・While inheriting a traditional and beautiful spoke design, the adoption of strong forged aluminum allows for sufficient rigidity to withstand harsh riding conditions, while also possessing appropriate elasticity to absorb impacts from the road surface.
・Naturally clears JWL standards.
【Matrix】

・7-spoke cruciform section design.
・Reference weight F: 3.6kg / R: 5.6kg (*1)
【Rim】

・The rim section, machined to be extremely thin using forged aluminum, achieves astonishing lightness.
・Weight reduction suppresses the gyroscopic effect, which significantly impacts dynamic performance.
・Furthermore, it ensures sufficient rigidity for street use and possesses excellent durability.
【Hub】

・By manufacturing the entire wheel body through full-machining, a high level of symmetry and high-precision rotational balance are achieved.
・Additionally, by making the hub section, which is categorized by vehicle model, a split structure, it became possible to machine the inside of the wheel center, achieving amazing weight reduction.
【Hub Attachment】

・Designed for bolt-on installation for each vehicle model, eliminating installation difficulties.
・Furthermore, bearings with double-sided rubber seals are adopted, achieving maintenance-free operation.
・Also, considering street use, genuine wheel hub seals can be used concurrently.
*Excluding CB-F
【Sprocket Damper】

・The rear wheel comes standard with a sprocket hub damper made of special resin, which directly transmits engine power to the rear wheel in an extremely stable state without feeling shock, regardless of whether it's on the circuit or street.
・The sprocket mounting method uses an outside mount, which allows for easy adjustment of the chain line to suit various customs.
・Sprockets are intended for use with PMC-X.A.M 530 driven sprockets (sold separately).
・Of course, genuine sprockets for KAWASAKI Z750-1000 models from 1976-1980 and Z1000J, R models from 1981-1985 can be used as is.
【Air Valve】

・A short, straight air valve is included.
・With attention to detail, the surface is anodized.
・Additionally, the material used is lightweight aluminum.
Specifications:
・Type: Rear
・Color: Gold
・Size: 4.50-18
・Quantity: 1 pc.
Compatible models:
・HONDA CB750/900/1100F
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
