Rear shock: total length 335 (335-345) mm, piston outer diameter φ30, shaft outer diameter φ12. For FORZA300, FORZA350.

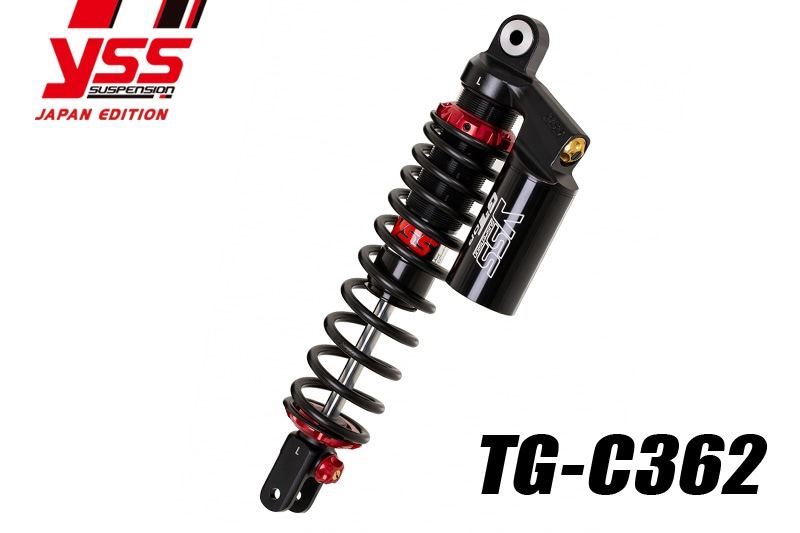

【PMC YSS 129-4001012 Rear Shock, Shock Length 335 (335-345)mm, Piston Diameter φ30, Shaft Diameter φ12, FORZA300 FORZA350, Stepless Spring Preload】
Equipped with 1 system for compression damping, 1 system for rebound damping, stepless spring preload, and ride height adjustment.
The large capacity reservoir tank prevents cavitation, increases oil capacity, and provides excellent heat dissipation.
Reducing the shaft diameter increases oil capacity and reduces friction loss.

Compatible Models
HONDA FORZA300 '18-
HONDA FORZA350 '20-

Specifications
Shock Length: 335(335-345)mm
Piston Diameter: φ30
Shaft Diameter: φ12
Spring: ID46 12-25N/mm L170

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications may change without prior notice. Please understand.

Notes
*This product is made-to-order/取り寄せ品 (approx. 3 months after order), so cancellations after ordering are not possible. Thank you for your understanding.
