Throttle Kit, Gold, Z900RS

【PMC ARCHI 189-2545 Throttle Kit Gold Z900RS Motorcycle 32φ】
The throttle pipe, which is key to throttle operation, is made of resin with excellent sliding properties and comes in three winding diameters: 32Φ, 36Φ, and 40Φ.
For smooth and precise throttle work at low to mid-speeds, we recommend the 32Φ with its wider opening. For ease of reaching full throttle and direct acceleration, we recommend the 40Φ with its narrower opening.
The intermediate 36Φ has a winding diameter equivalent to the stock part, with an opening angle of -5° compared to stock, providing a light high-throttle modification without significantly changing the ride feel.
These throttle pipes are also available individually, allowing you to change them according to your riding scene.
The compact throttle body, machined from aluminum, comes in three colors: silver, black, and gold, making it ideal for dressing up your handlebars.
The dedicated throttle cable is also compatible with up-position handlebars such as the ARCHI touring handle.
Includes through-grip with a total length of 120mm.

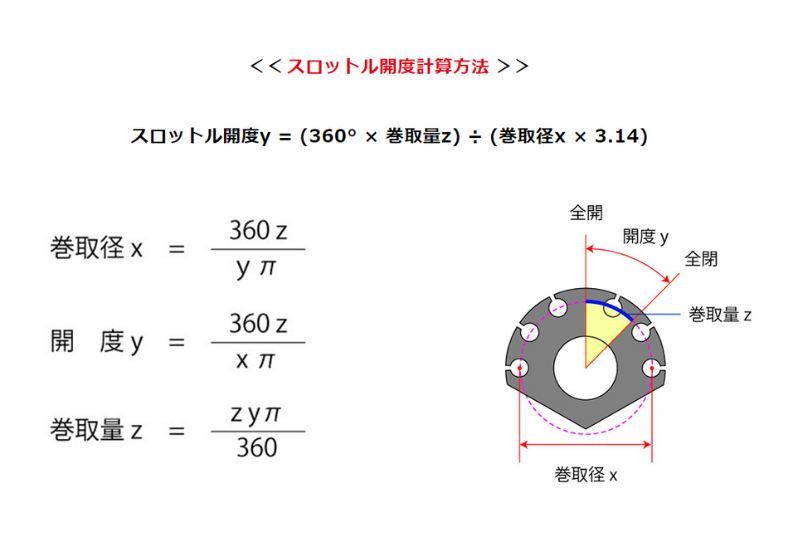

Throttle Pipe Data
Stock Winding Diameter: 36.5φ / Opening Angle: 80°
32φ Winding Diameter: 32.0φ / Opening Angle: 86°
36φ Winding Diameter: 36.0φ / Opening Angle: 75°
40φ Winding Diameter: 40.0φ / Opening Angle: 65°

Compatible Product Numbers
Throttle Pipe / Throttle
(Winding Diameter) Body Color
32Φ Silver 189-2542
Black 189-2544
Gold 189-2545
36Φ Silver 189-2552
Black 189-2554
Gold 189-2555
40Φ Silver 189-2562
Black 189-2564
Gold 189-2565

Compatible Models
Kawasaki Z900RS '18-'25

Specifications
Color: Gold
Installation Difficulty: This level of work can be performed by individuals with specialized knowledge and experience regarding motorcycle construction and mechanisms, and who can handle adjustments beyond the manual.

■Image Disclaimer
*Images are for illustration purposes only. Includes products of different sizes and colors. Product design and specifications are subject to change without notice. Please be aware.

Precautions

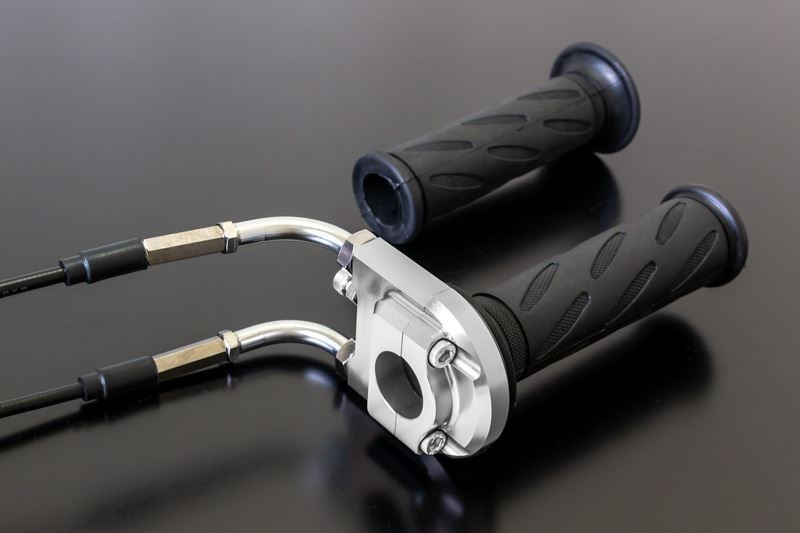

*The second and subsequent images show the silver model.
*Please refer to the service manual for installation.
