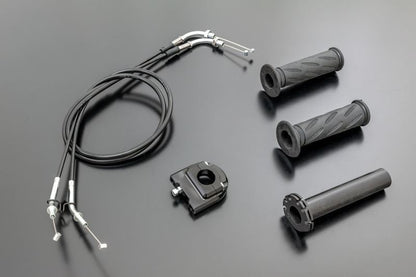

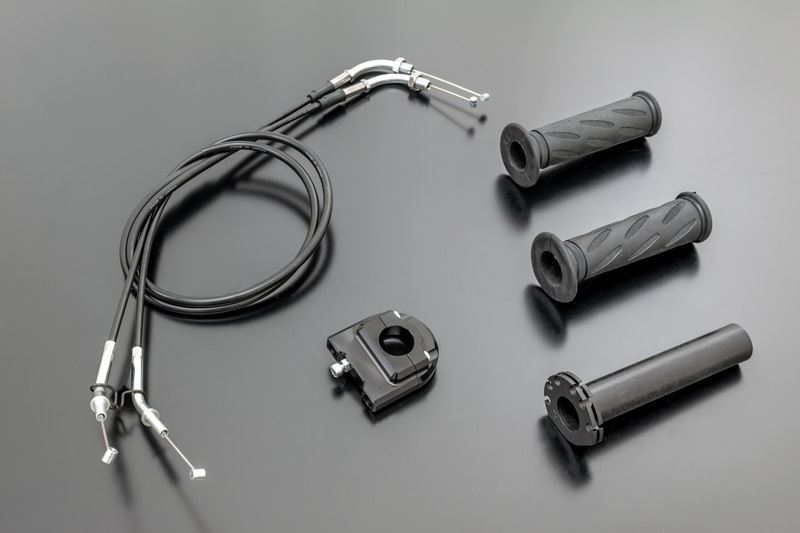

Throttle Kit Black Z900RS

【PMC ARCHI 189-2564 Throttle Kit Black Z900RS Motorcycle 40φ】
The throttle pipe, which is key to throttle operation, is made of resin with excellent sliding properties and is available in three winding diameters: 32Φ/36Φ/40Φ.
For smooth and precise throttle control at low to mid-speeds, we recommend the 32Φ with a larger opening angle. For ease of reaching full throttle and direct acceleration, we recommend the 40φ with a smaller opening angle.
The intermediate 36Φ size has a winding diameter equivalent to the stock part, with an opening angle of -5° compared to stock, providing a lighter quick-throttle effect without significantly changing the riding feel.
Furthermore, these throttle pipes are available individually, so you can change them to suit your riding style.

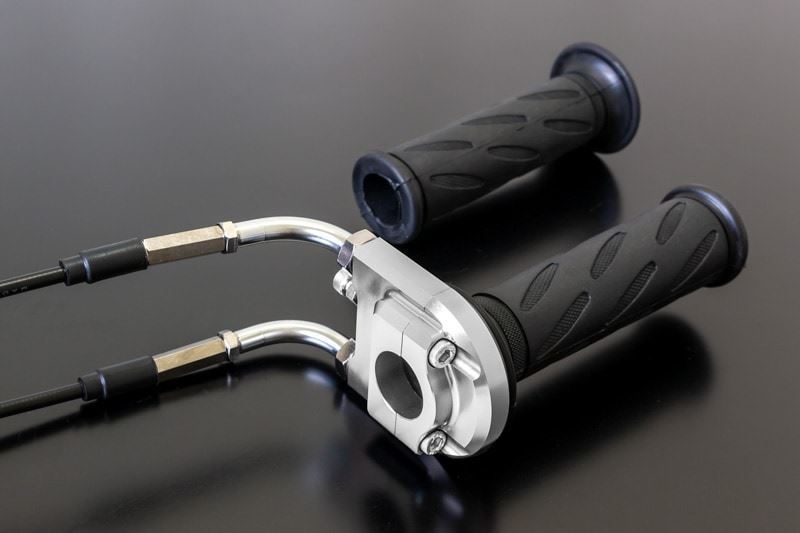

The compact, billet aluminum throttle body is available in silver, black, and gold, making it ideal for dressing up your handlebar area.

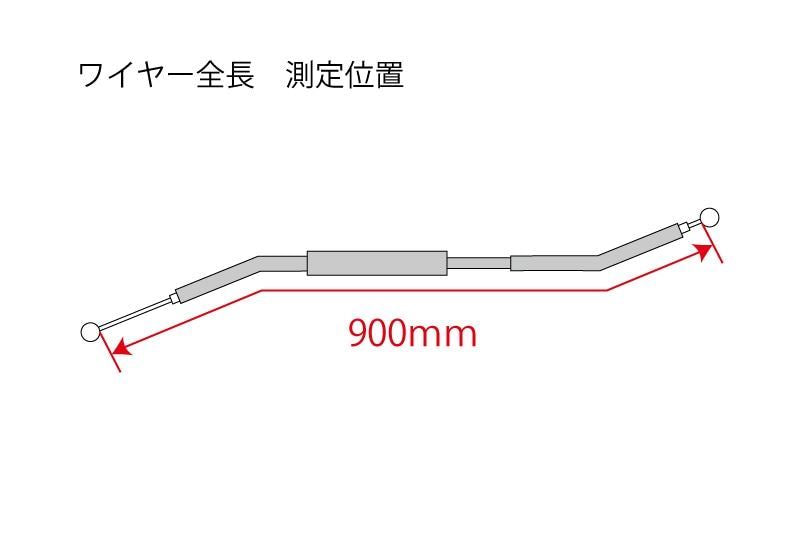

The dedicated throttle cable is also compatible with up-position handlebars such as the ARCHI touring handlebars.
Comes with a 120mm through-type grip.

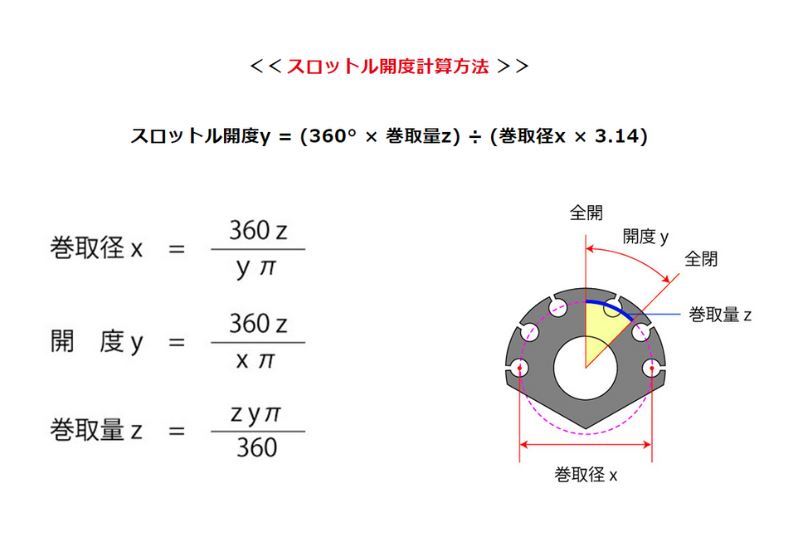

Throttle Pipe Data
Stock Winding Diameter: 36.5φ / Opening Angle: 80°
32φ Winding Diameter: 32.0φ / Opening Angle: 86°
36φ Winding Diameter: 36.0φ / Opening Angle: 75°
40φ Winding Diameter: 40.0φ / Opening Angle: 65°

Compatible Product Numbers
Throttle Pipe / Throttle
(Winding Diameter) Body Color
32Φ Silver 189-2542
Black 189-2544
Gold 189-2545
36Φ Silver 189-2552
Black 189-2554
Gold 189-2555
40Φ Silver 189-2562
Black 189-2564
Gold 189-2565

Compatible Models
Kawasaki Z900RS '18-'25

Specifications
Color: Black
Installation Difficulty: This task requires a professional level of knowledge and experience regarding motorcycle construction and mechanisms, including the ability to perform adjustments beyond what is described in the manual.

■Notes on Images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please be aware of this.

Precautions

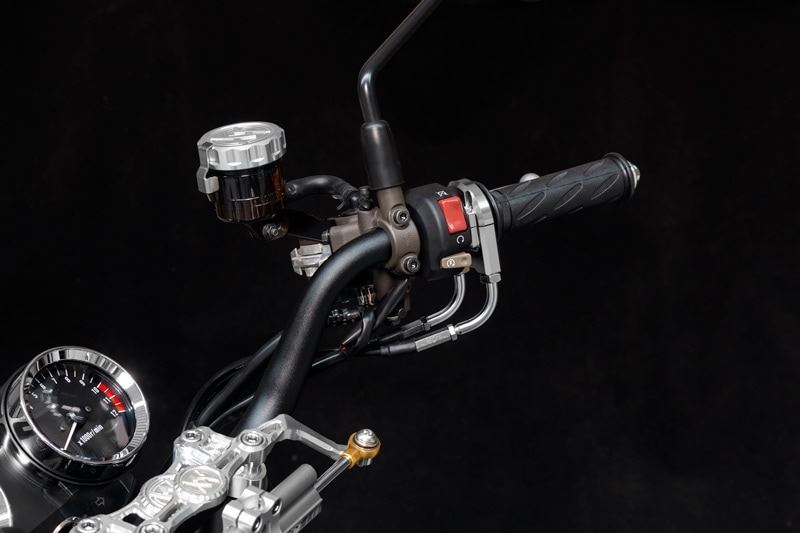

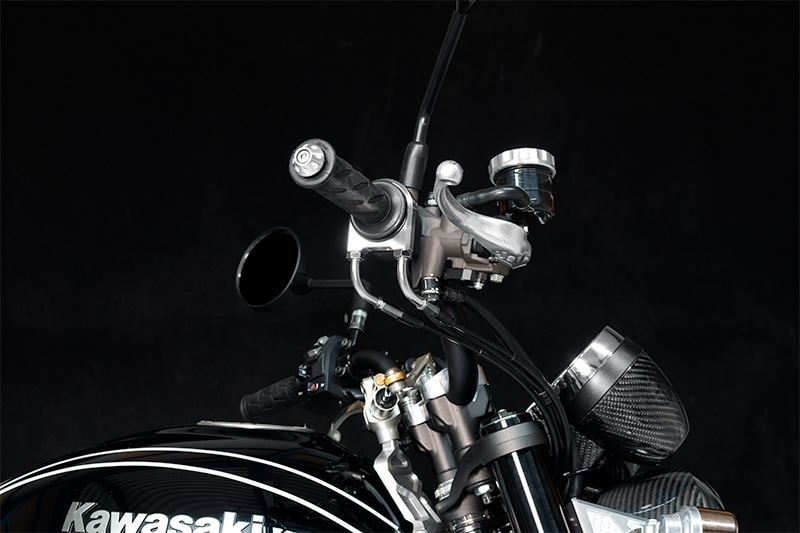

*The second and subsequent images are of the silver model.
*Please refer to the service manual for installation instructions.
