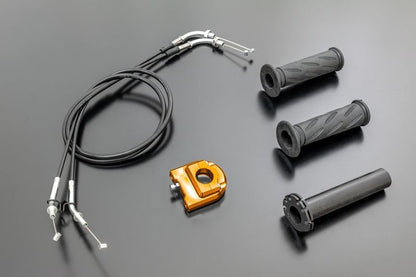

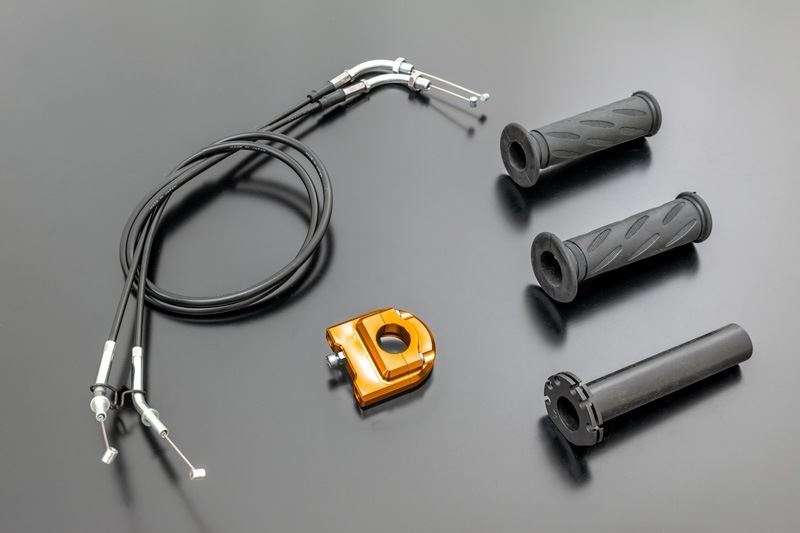

Throttle Kit, Gold, Z900RS

【PMC ARCHI 189-2565 Throttle Kit Gold Z900RS Motorcycle 40φ】
The throttle pipe, which is key to throttle operation, is made of resin with excellent sliding properties, and comes in three winding diameters: 32Φ/36Φ/40Φ.
For smooth and precise throttle work at low to mid-speeds, we recommend the 32Φ, which has a larger opening. For ease of reaching wide-open throttle and direct acceleration, we recommend the 40φ, which has a smaller opening.
The intermediate 36Φ has the same winding diameter as the stock, with an opening of -5° compared to stock, providing a light high-throttle modification without significantly changing the riding feel.
These throttle pipes are also available individually, so you can change them to suit your riding scene.
The compact throttle body, machined from aluminum, comes in three colors: silver, black, and gold, and is ideal for dressing up your handlebar area.

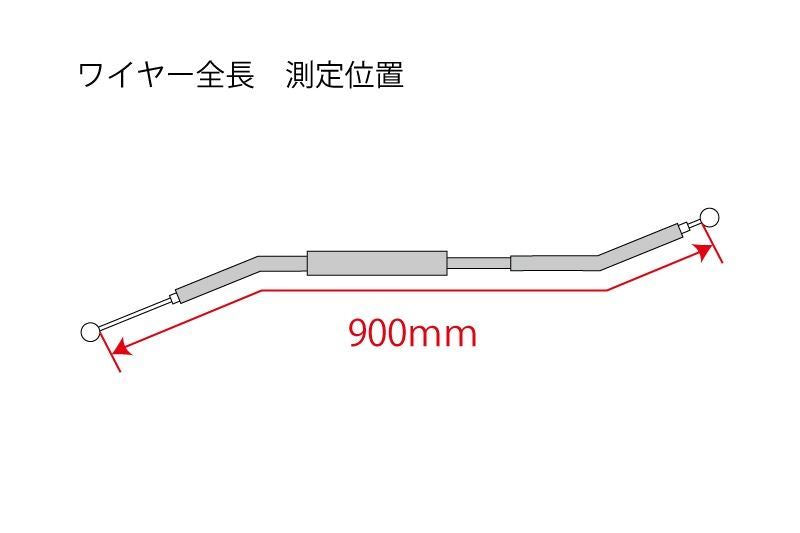

The dedicated throttle cable is also compatible with up-position handlebars such as ARCHI touring handlebars.
Includes through-type grips with a total length of 120mm.

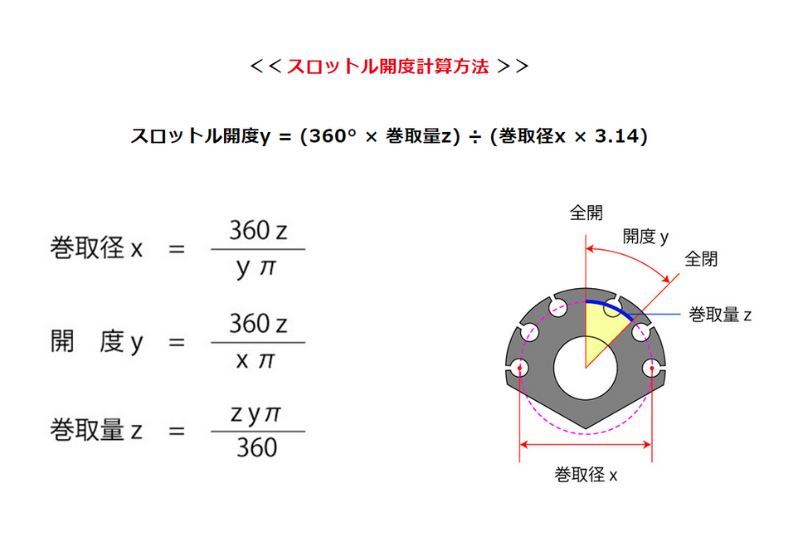

Throttle Pipe Data
Stock Winding diameter: 36.5φ / Opening: 80°
32φ Winding diameter: 32.0φ / Opening: 86°
36φ Winding diameter: 36.0φ / Opening: 75°
40φ Winding diameter: 40.0φ / Opening: 65°

Corresponding Product Numbers
Throttle Pipe / Throttle
(Winding Diameter) Body Color
32Φ Silver 189-2542
Black 189-2544
Gold 189-2545
36Φ Silver 189-2552
Black 189-2554
Gold 189-2555
40Φ Silver 189-2562
Black 189-2564
Gold 189-2565

Compatible Models
Kawasaki Z900RS '18-'25

Specifications
Color: Gold
Installation difficulty: Requires a professional level of knowledge and experience in motorcycle structure and mechanisms, including the ability to perform adjustments beyond the manual.

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please be aware of this.

Precautions

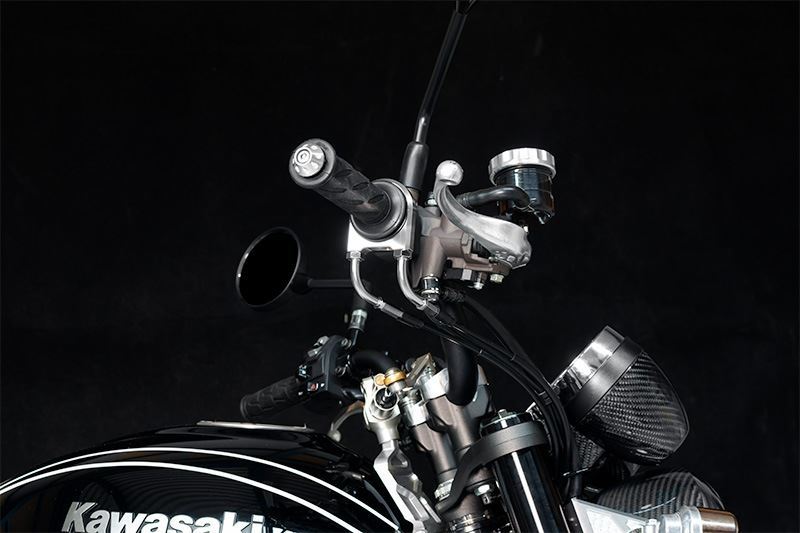

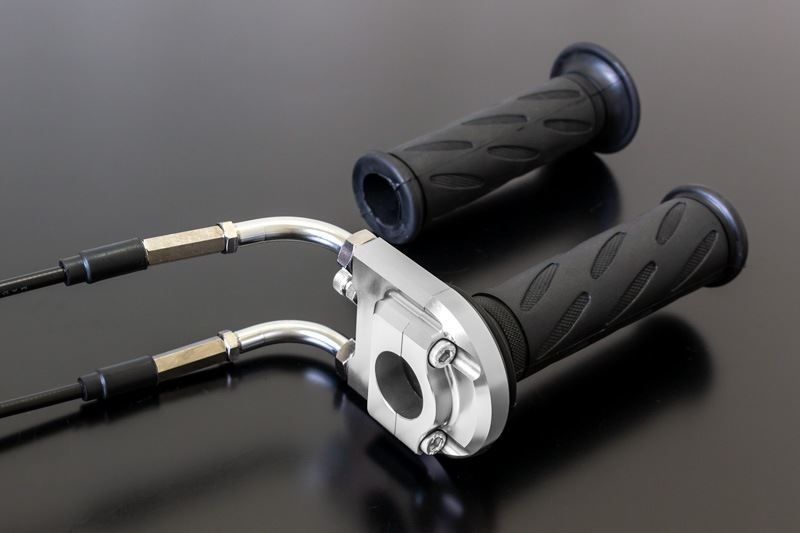

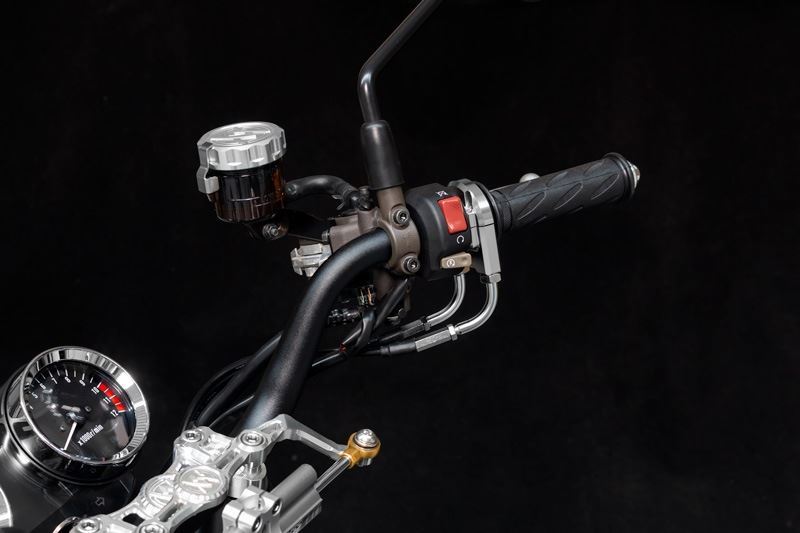

*The second and subsequent images show the silver model.
*For installation, please refer to the service manual.
