Carburetor Kit TMR38φ Z-series/J/R/GSXS

【PMC 27-28032 Carburetor Kit TMR38φ Z-Series/J/R/GSXS】 Product Description:
・The MIKUNI TMR carburetor was developed with the goal of combining excellent response and advanced controllability. Inheriting the lineage of the renowned TM carburetor, it features a compact and lightweight body with a "Hyper Nozzle." Furthermore, the carburetor body, refined through racing, offers superior operability and responsiveness, not only increasing output but also enabling direct throttle control.

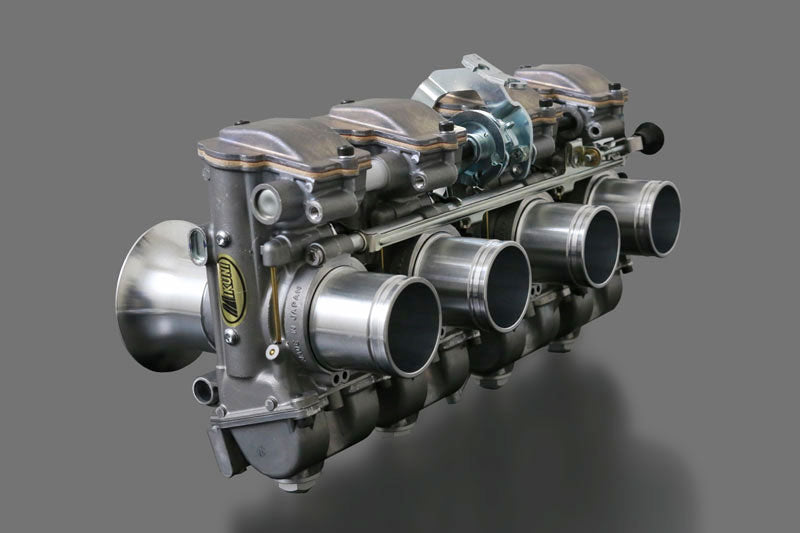

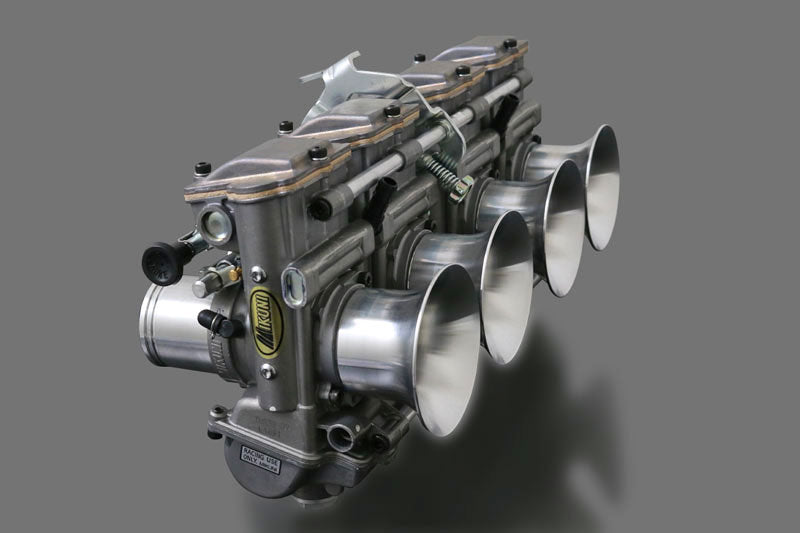

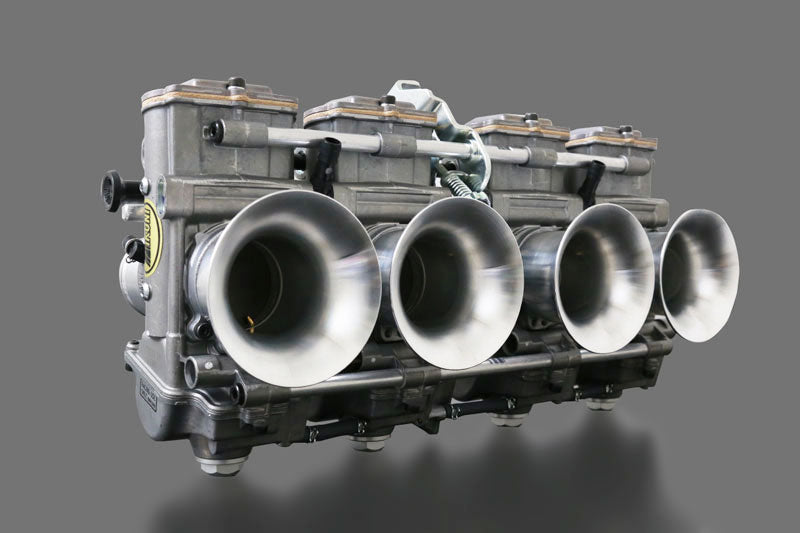

・You can choose between a funnel specification for even higher output, or an air filter specification that combines excellent intake efficiency with dust protection.
・Replacing the carburetor is the most effective and cost-efficient way to increase engine power.
・When combined with a muffler replacement, it can significantly improve intake and exhaust efficiency, allowing the engine to unleash its maximum power.

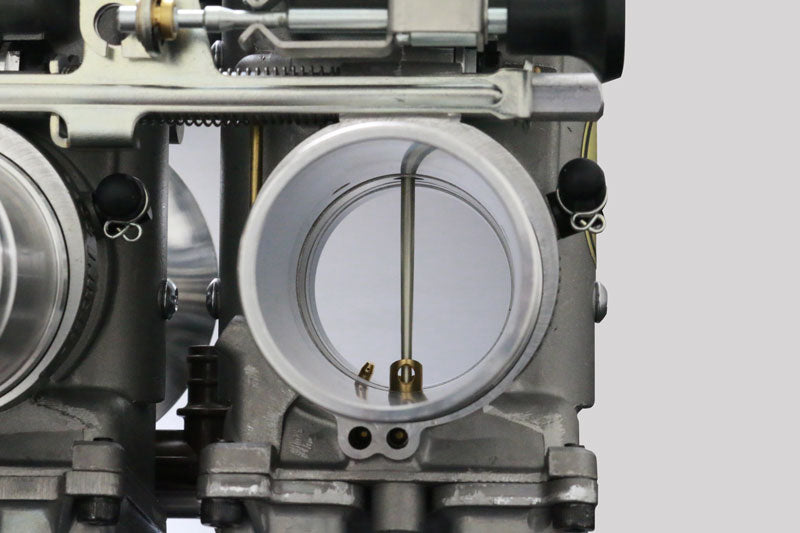

・The thin throttle valve and integrated mixing body structure achieve high intake efficiency despite being compact and lightweight.

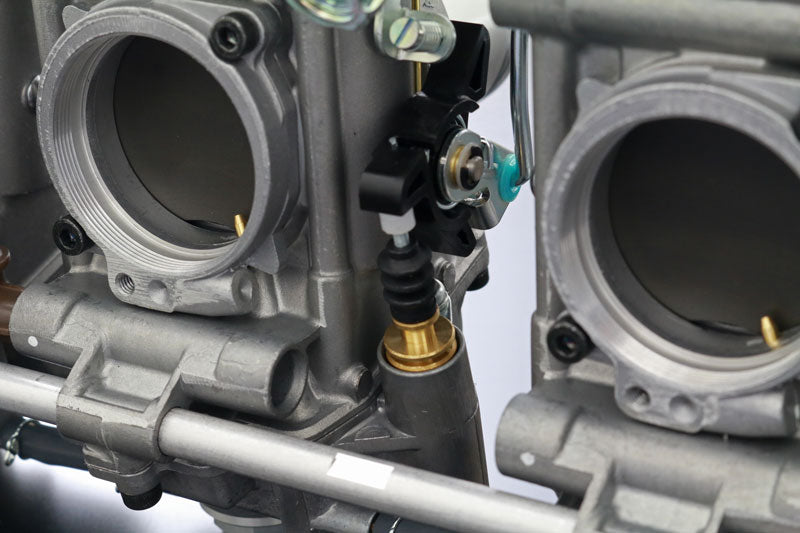

・Adopting a plunger-type accelerator pump that is easy to set, it provides smooth and responsive acceleration from low to mid-range.

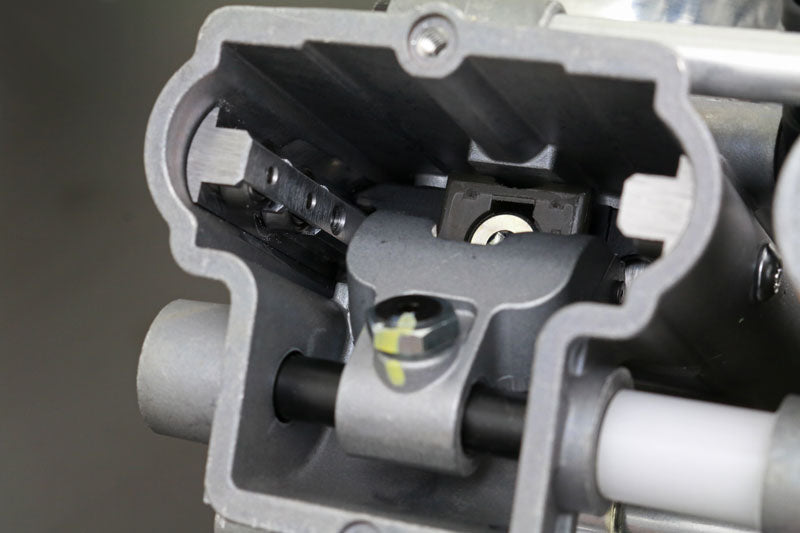

・Ball bearings are arranged in the sliding part of the throttle valve, achieving smooth operability.

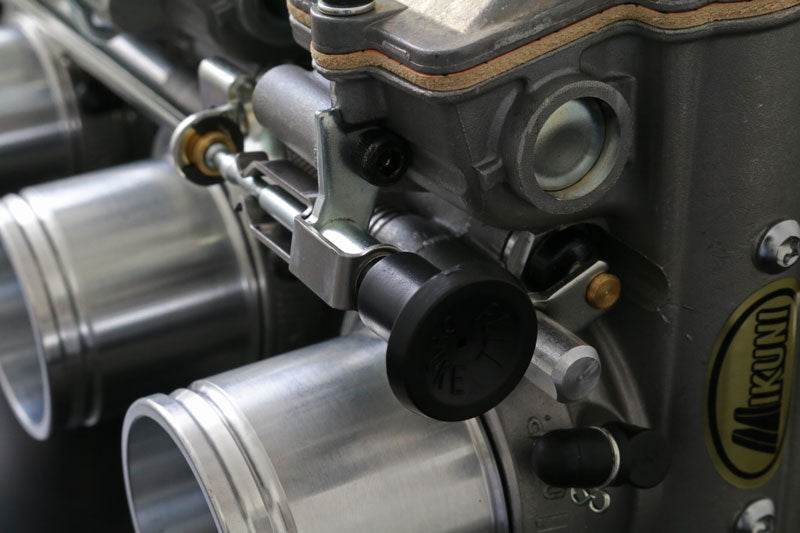

・It has an independent starter mechanism, making starting easy in cold weather and allowing for stable warm-up. The starter is also very convenient during tuning.

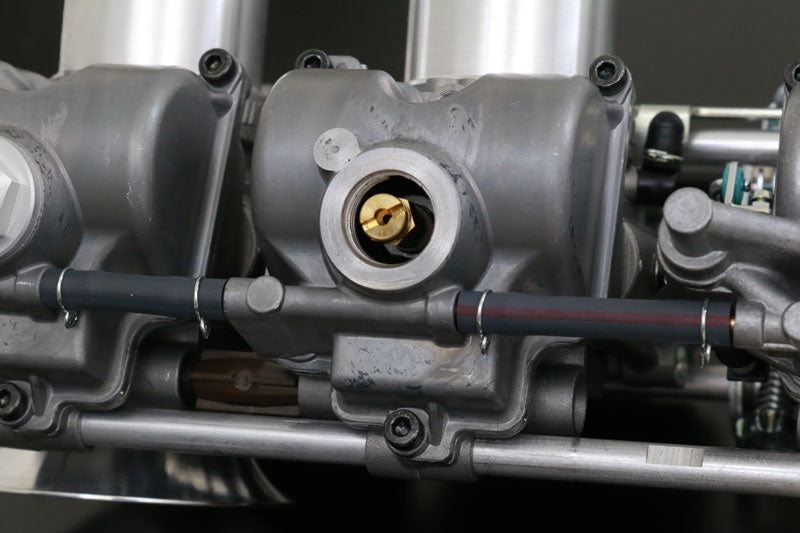

・Setting parts such as the throttle valve and jet needle are designed for easy replacement.
・The specially designed main nozzle "Hyper Nozzle" increases combustion efficiency and eliminates combustion lag. Z1000R/J, GPZ1100: A separate throttle kit is required. Z1000MK2, Z1R: Fuel cock needs replacement (PINGEL recommended).
・Z1/Z2, Z1000MK2/Z1R: Manifold band needs replacement (Z1000R genuine part).

Specifications:
・Carburetor Type: TMR38-D7
・Included Funnel Length: 40mm
・Carb Pitch: 77-93-77
・Spigot Outer Diameter/Overall Length: 43/48

Compatibility:
・Z750-1100, GSF1200/INAZUMA1200, GSX750S/GSX1100S


■Notes *Images are for illustration purposes only. Includes products with different sizes and colors. *Product design and specifications are subject to change without notice. Please be aware.
