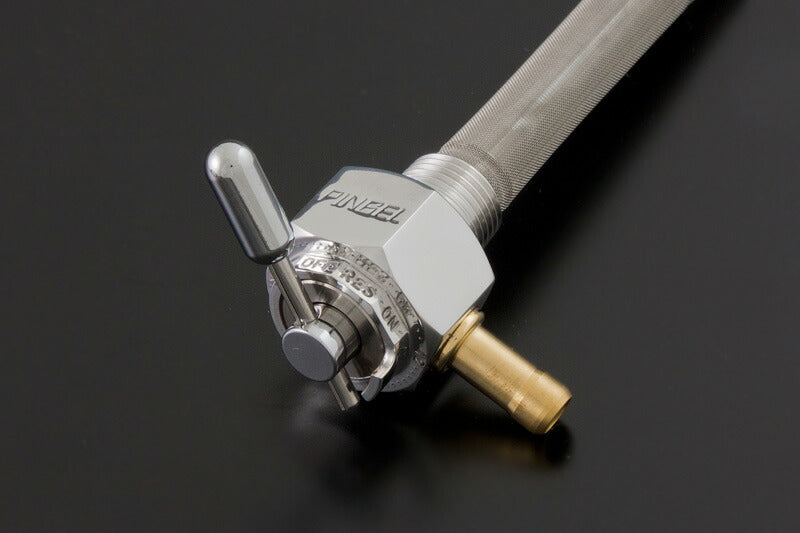

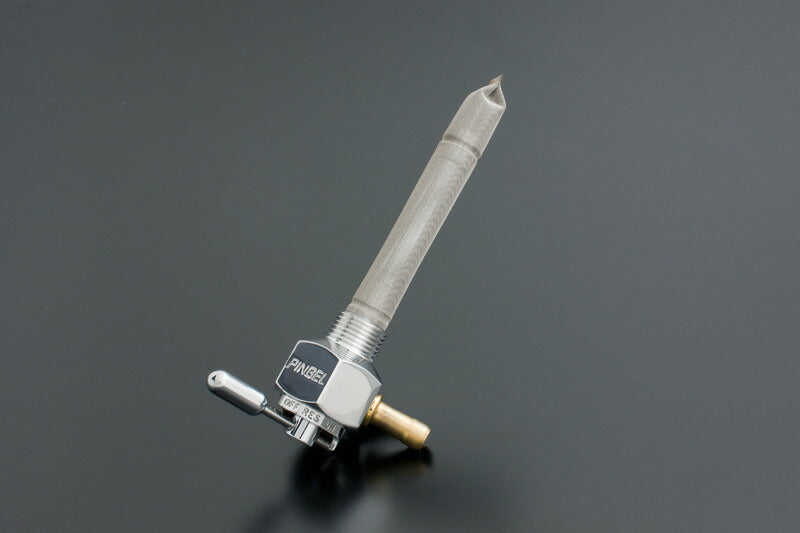

Single Outlet with Reserve 6000 Series 3/8" NPT Fuel Petcock

[PMC 39-6211 Single Outlet with Reserve 6000 Series 3/8"NPT Fuel Valve]
・PINGEL's high-flow fuel valve series meets the "More GAS" demands of tuned engines that have refined their intake, exhaust, and drivetrain tuning with a massive supply volume.
・Known for its overwhelming performance, it is adopted by most top teams in the American drag racing scene, proving its high safety and reliability.
・Pingel proposes a new fuel system tune-up.

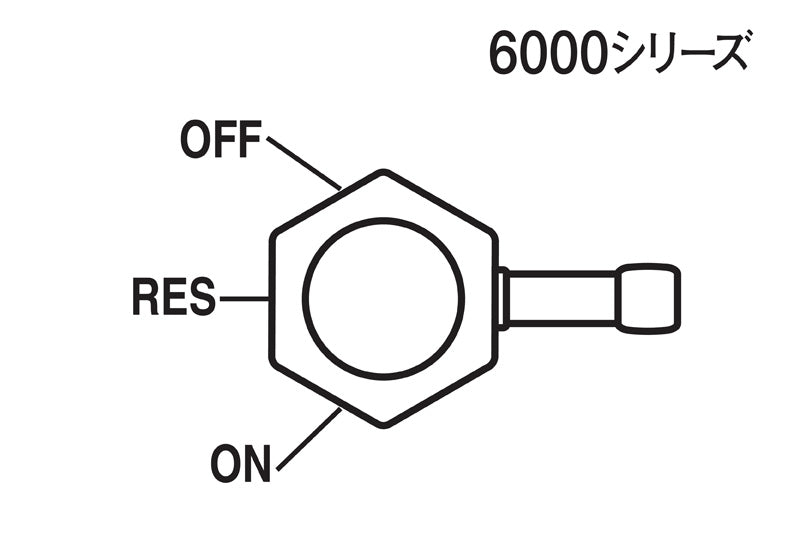

・Please refer to the image for the fuel valve position.
・■ Interference of the fuel valve

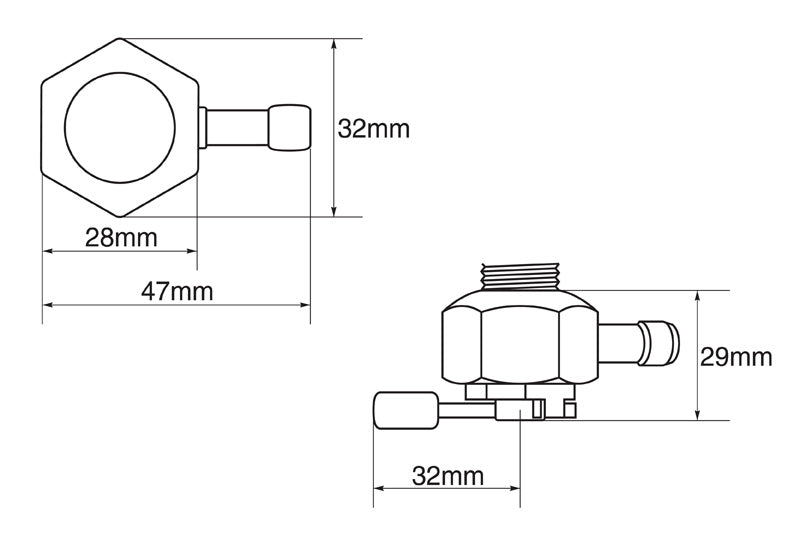

・There is a risk of the fuel valve body interfering with the carburetor or engine body, so please be sure to refer to the dimension diagram and check the mounting space on your vehicle.
・■ Total height when installed, including the adapter
・This dimension is the sum of the height of the fuel valve body and adapter, plus approximately 3-5mm for the NPT thread clearance.
・■ Mount setting
・It is NPT (National Pipe Thread) standard.
・Please choose according to the size of the gasoline tank you are using.
Specifications:
・Type: 6000 series
・Thread diameter: 3/8"NPT
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
