CP5569 Front Floating Brake Kit (Hole Design/Black) Single Disc 320φ 1 Set

【PMC 75-453 CP5569 Front Floating Brake Kit (Hole Design/Black) Single Disc 1 Set PMC Brake Kit Single 4-hole】
A brake kit that improves braking performance and control with a floating mounted outer rotor disc.

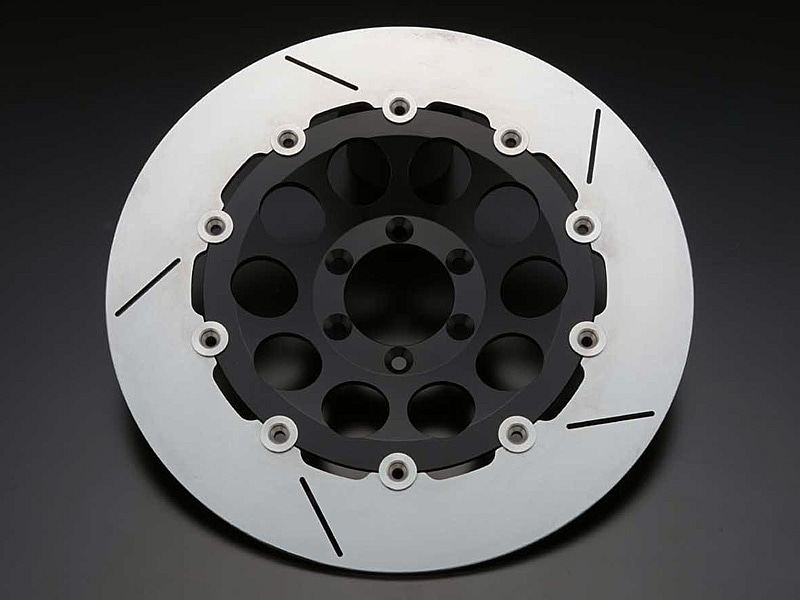

Combines a 320φ disc rotor, suitable for a wide range of uses from street to circuit, ensuring reliable stopping power.
A brake kit that delivers sufficient braking force by combining a forged body, 4-piston "CP5569 caliper."

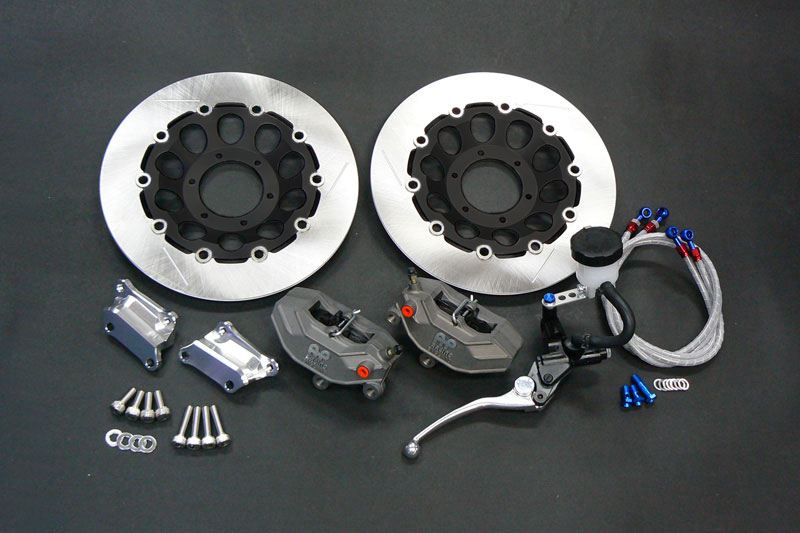

Kit contents: Disc rotor, caliper support, caliper, brake pads, EARL's brake hose
Nissin master cylinder, single (14mm), double (5/8 inch) adopted
The brake hose is for normal handlebars. If you wish to change the brake hose specifications, an additional fee will be required.
■Specifications
Compatible models: KZ900 '76
Z750A4/A5 '76-'77
Z750D1 '77-'78
KZ1000 (A1) '77
KZ1000 (A2) '78
KZ1000MK(2) (A3) '79
KZ1000MK(2) (A4) '80
Z750FX (D2) '79
Z750FX (D3) '80
Z1-R (D1) '78
Z1-R (D2,D3) '79-'80
Type: CP5569 Front Floating Brake Kit (Hole Design/Black) Single Disc
Size: 32φ
Quantity: 1 set
*When installing on '72-'75 Z1/Z2 standard forks, the floating pins may interfere with the bottom case due to individual vehicle differences.
In such cases, please machine the bottom case before use.
*When using in combination with Morris wheels, a separately sold conversion adapter set will be required.
