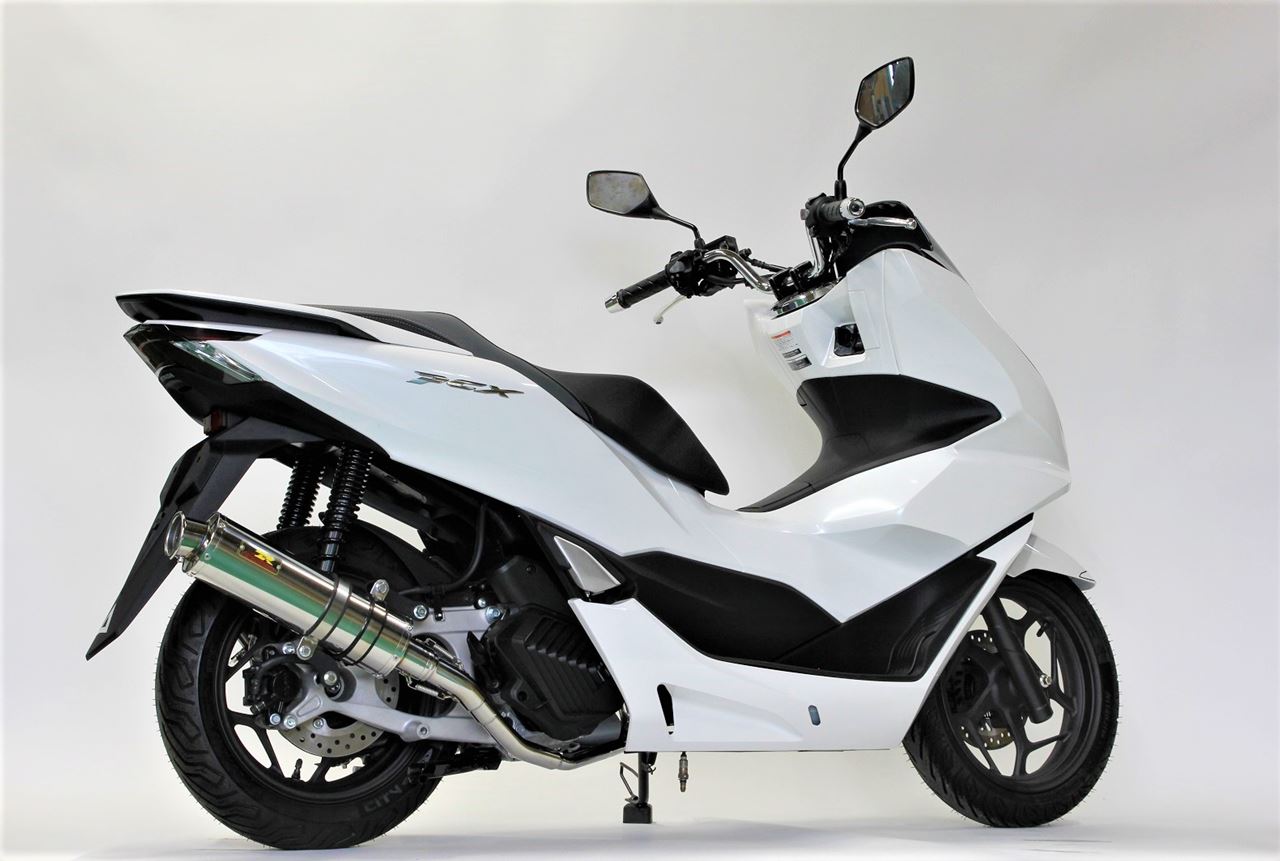

22Racing Stainless Exhaust PCX125 JK05

【Realize 350-009-00 22Racing Stainless Steel Muffler PCX125 JK05 Motorcycle】
■Product Description This model features a beautiful integration of silencer and exhaust pipe. While maintaining the racing style, a stainless steel silencer with a subdued appearance has been added to the lineup. Using 0.6mm thick stainless steel material, it is finished with a lightweight shell comparable to titanium. The exhaust pipe is a full exhaust specification made of SUS304 stainless steel with a polished finish. Specifications Silencer (total length approx. 450mm) Shell part: Stainless steel 100Φ x 340L Parts other than shell: Stainless steel polished finish Exhaust outlet shape: 60.5Φ angled curl specification (standard baffle 57.5Φ) Insertion part: 50.8Φ double hook fixing specification Exhaust pipe Stainless steel polished finish Full exhaust specification Double hook fixing specification Other Sound volume: Approx. 90db with baffle installed (removable), varies by model. Sound quality: Heavy bass ■Compatible model PCX125 Compatible model number: JK05 Accessories: Silencer band x 2 Dedicated stay upper and lower set x 1 M8 x 25 bolt x 1 M8 x 55 bolt x 1 M10 x 30 bolt x 1 M10 x 60 bolt x 1 M8 nut x 2 M8 x 35 collar x 1 M10 x 35 collar x 1 Spring S x 2
