Full Exhaust Muffler RPM-67Racing Titanium φ67×300 JADE

【RPM 2624Y-01 Full Exhaust System RPM-67Racing Titanium φ67×300 for JADE (MC23) - Street Legal Racing Bike Motorcycle by RPM】
■ Product Description
The RPM-67Racing is an exhaust system born from approximately 300 meticulous handcrafting processes and TQC (Total Quality Control). It is an original muffler brand launched in 1998 as an F-TYPE replica model, retaining the appearance of the RPM-4in2in1 F-TYPE manufactured until 1989 and largely preserving the internal structure of the silencer, which is crucial for sound quality.

■ Detailed Description
● Exhaust Pipe
The 4in2in1 manifold system adopted offers a greater exhaust synergy effect than the 4in1 manifold system for 4-cylinder engines, and greatly contributes to producing a high-quality sound.
The material used is steel (STKM11A carbon steel pipe for machine structural purposes). Each part is carefully polished by skilled craftsmen, then subjected to high-quality plating to provide excellent aesthetics and weather resistance.
● Silencer
The φ67×300 silencer, which produces a unique and exhilarating racing sound, achieves maximum sound deadening with minimal exhaust resistance by having a completely double-layered internal structure.
Furthermore, its lightweight and compact body possesses high rigidity and excellent resistance to vibrations caused by harsh operating conditions.
Inheriting the internal silencer structure of the RPM-4in2in1 F-TYPE, it produces a deep sound at low RPMs and a unique, exhilarating racing sound at high RPMs.

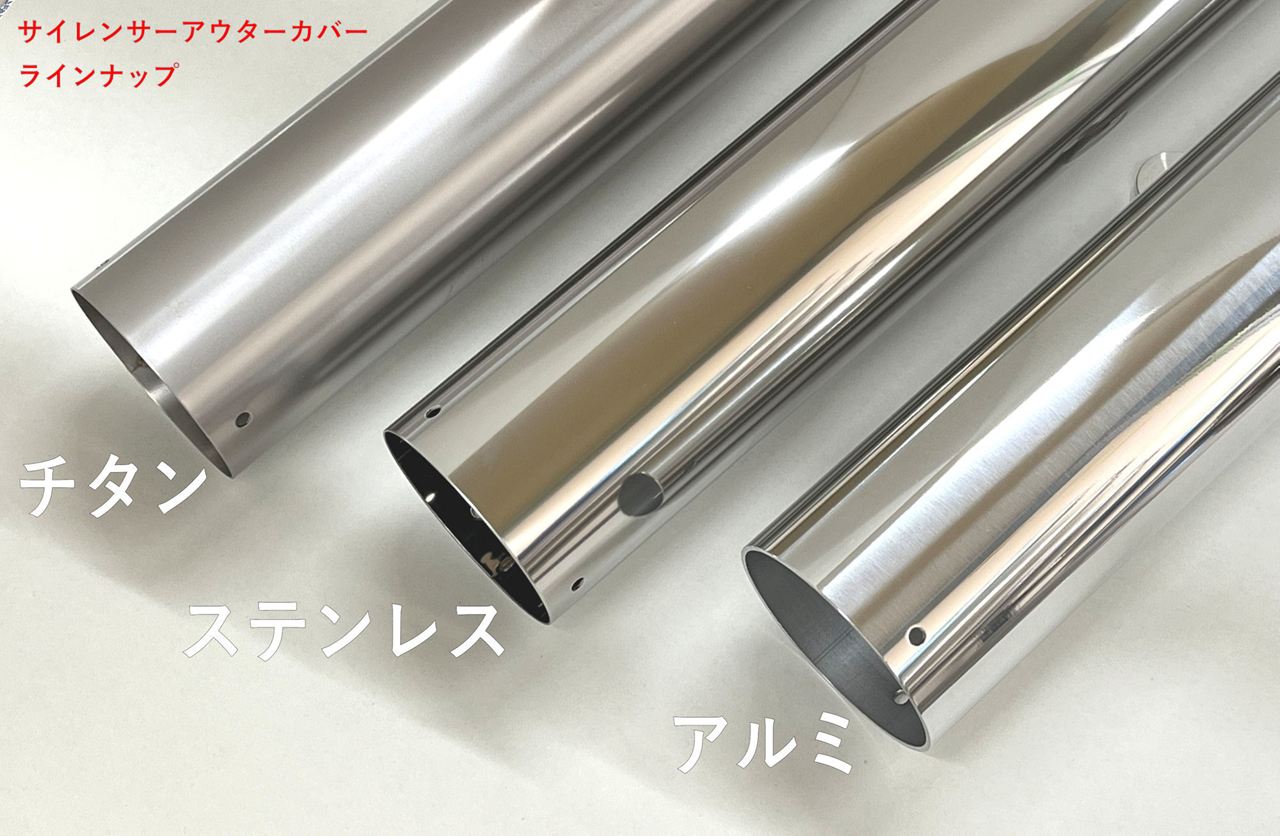

The outer cover material is available in the following three types:
・Aluminum alloy A6063S
・Stainless steel SUS304 / Mirror finish
・Titanium TP270
● Component Configuration
This is a full exhaust system consisting of a total of five parts: "four front exhaust pipes (from the engine to the manifold)" and "one tail ASSY (from the manifold to and including the silencer)."
● Mounting Condition
It is fixed to the vehicle body at two points: the engine exhaust port and the tail stay.
When attaching to the engine exhaust port, use the free flange (exhaust holder) included with this product.
※Exhaust gaskets are not included, so you will need to prepare them separately.
● Silencer Structure Requirements
The RPM-4in2in1 F-TYPE allowed for the removal and reinstallation of the internal silencer for race use or repair purposes. However, many users would ride on public roads with the internal silencer removed, which went against the original intent. Therefore, RPM now welds the internal silencer in place.
※Sound volume and back pressure cannot be adjusted from the new factory state.

■ Compatible Models
HONDA
JADE (MC23)

■ Specifications
Silencer cover: Titanium
Exhaust pipe: Steel plating
Fitting type: Full exhaust
Silencer size: φ67×300
Oil change: 〇
Oil filter change: 〇
Tandem: 〇
Street legal: 〇
Proximity exhaust noise value: 96db

■ Notes

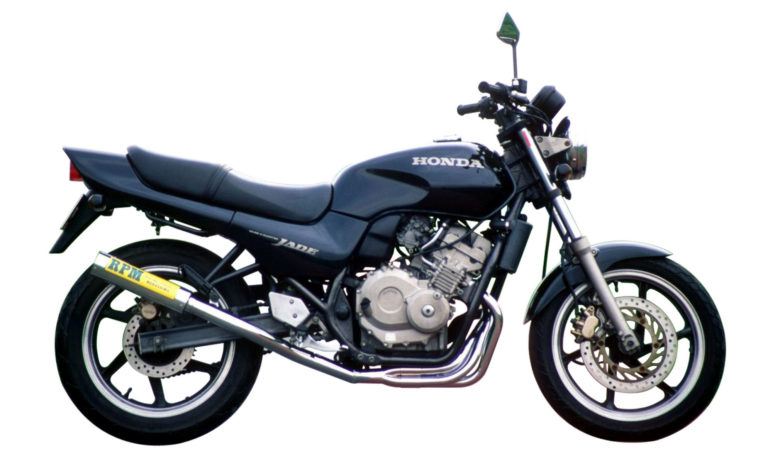

※This product is for the muffler only. The vehicle in the image is for installation reference.
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product design and specifications may change without prior notice. Please be aware.
※As this product is made-to-order, cancellations after placing an order are not possible.
※Due to made-to-order production, delivery may take some time. Also, there may be unannounced discontinuation by the manufacturer or specification changes. Please be aware in advance.
