Reinforced Crankcase Kit for 88cc/SCUT106cc/106cc Monkey, Monkey Baja, Gorilla

【SP Takegawa 01-00-0054 Reinforced Crankcase Kit for 88cc/SCUT106cc/106cc Monkey Monkey Baja Gorilla Engine Parts Takegawa】
■Product Description
The reinforced crankcase is a meticulously designed crankcase that enhances case rigidity and is specially designed in detail to handle the stress on the crankcase caused by increased displacement.

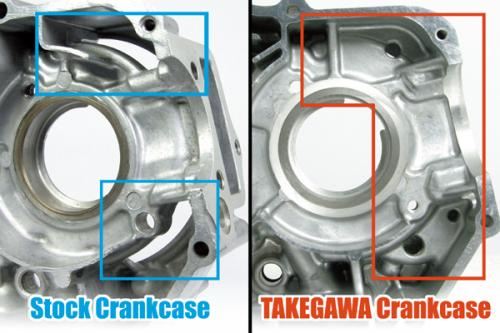

The reinforced crankcase is made of die-cast aluminum, allowing for precise placement of reinforcing ribs and increased strength.

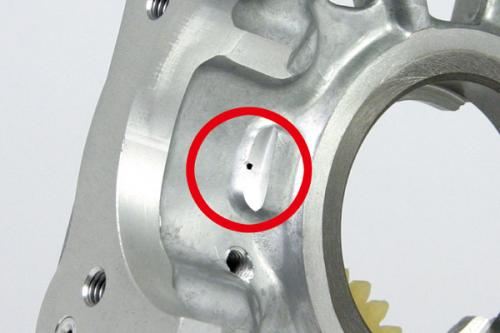

In addition, an oil jet mechanism with excellent cooling efficiency is adopted, which directly injects oil into the connecting rod, cylinder, piston, etc., thereby cooling the inside of the engine.

■Detailed Description
Adopts a crankshaft direct-drive super oil pump (with relief valve function).
The relief valve mechanism enables hydraulic control, maintaining appropriate oil volume and oil level.
The breather pipe has an inner diameter of 6mm, compared to the normal 4mm, to reduce the internal pressure of the crankcase in large displacement engines.

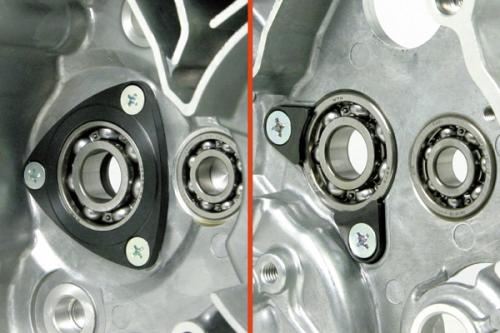

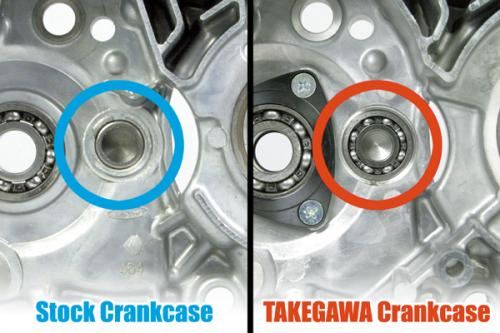

Mission bearings, which are subjected to large torque due to increased displacement, are equipped with a dedicated bearing hold plate.
88cc/SCUT100cc/SCUT106cc/106cc
No boring required

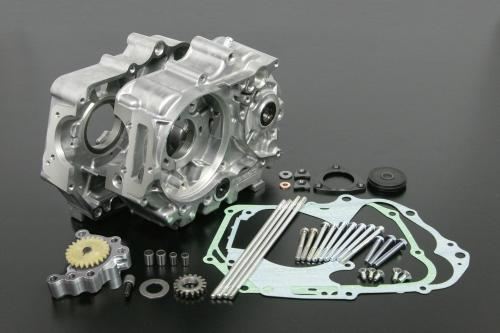

●Kit Contents
Reinforced crankcase, case gasket, super oil pump (with relief valve function), cam chain guide roller & bolts, shim ring, knock pin, main shaft bearing hold plate, countershaft bearing hold plate, various fixing bolts, stud bolts (the included stud bolts vary depending on the displacement)

■Compatible Models
HONDA
12V Monkey/Gorilla (Z50J-2000001~/AB27-1000001~1899999)
Monkey BAJA
*Can also be used with Monkey/Gorilla (Z50J-1300017~1805927) by installing an SP Takegawa generator cover.
●Applicable Engines
88cc/SCUT100cc/SCUT106cc/106cc

■Notes
*Images are for illustration purposes only. Products of different sizes and colors may be included.
*Product design and specifications are subject to change without notice. Please be aware of this.
*Normal clutches and primary reinforced clutches cannot be installed. Please purchase an SP Takegawa special clutch kit or a dry clutch kit.
*To install a cross mission in this crankcase, the transmission input shaft must be of the ball bearing type.
