Reinforced Crankcase Kit Secondary Type/124cc for Monkey, Monkey Baja, Gorilla

【SP Takegawa 01-00-0055 Reinforced Crankcase Kit Secondary Type/124cc for Monkey, Monkey Baja, Gorilla - Engine Parts Takegawa】
■Product Description
The reinforced crankcase is a specially designed crankcase that enhances case rigidity and has been meticulously crafted to withstand the stress placed on the crankcase by increased engine displacement.

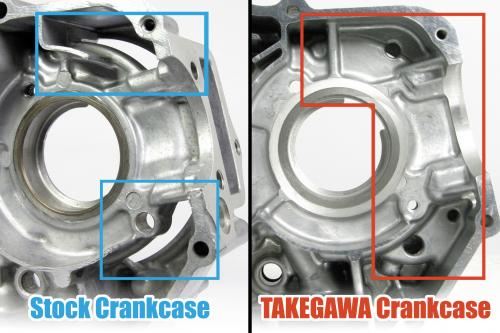

By utilizing a die-cast aluminum crankcase, we have achieved increased strength and the placement of reinforcing ribs in precise locations.

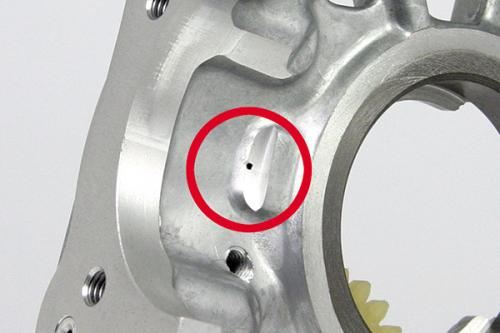

Additionally, an oil jet mechanism with excellent cooling efficiency is employed, which constantly sprays oil directly onto the connecting rods, cylinders, pistons, etc., allowing the internal engine to be cooled.

■Detailed Description

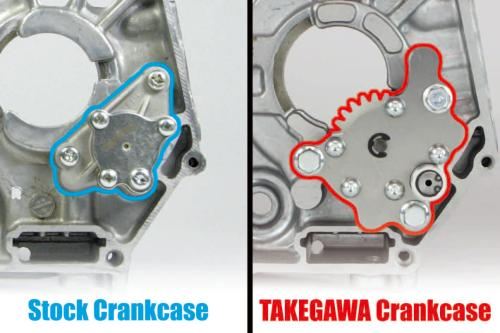

Features a crankshaft direct-drive super oil pump (with relief valve function).
The relief valve mechanism enables oil pressure control, maintaining appropriate oil volume and oil level.
The breather pipe has an inner diameter of 6mm, compared to the normal 4mm inner diameter, to reduce the internal pressure of large displacement engine crankcases.

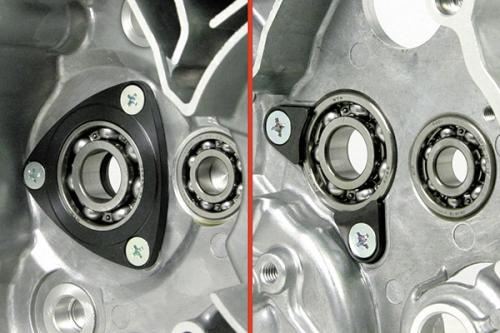

For the mission bearings, which receive significant torque due to increased displacement, a dedicated bearing hold plate is provided.
●Applicable Engines
Bore & Stroke Up 124cc
Boring processed
●Kit Contents

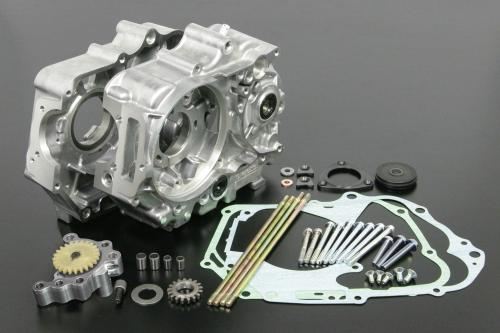

Reinforced crankcase, case gasket, super oil pump (with relief valve function), cam chain guide roller & bolt, shim ring, knock pin, main shaft bearing hold plate, counter shaft bearing hold plate, various fixing bolts, stud bolts (the included stud bolts vary depending on the target displacement)

■Compatible Models
HONDA
12V Monkey Gorilla (Z50J-2000001~/AB27-1000001~1899999)
Monkey BAJA
*Can also be used with Monkey Gorilla (Z50J-1300017~1805927) by installing an SP Takegawa generator cover.
●Applicable Displacement (limited to vehicles with SP Takegawa engine parts installed)
Bore & Stroke Up 124cc

■Notes
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product design and specifications are subject to change without notice. Please be aware.
※Normal clutch and primary reinforced clutch cannot be installed. Please purchase an SP Takegawa Special Clutch Kit or Dry Clutch Kit.

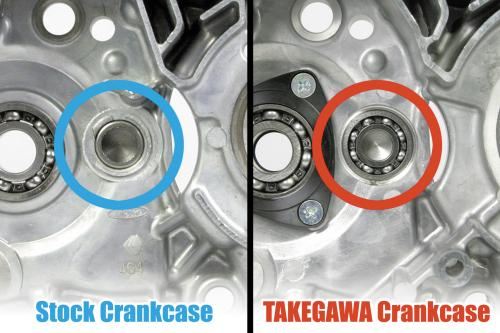

※To install a cross mission in this crankcase, the transmission receiving shaft must be a ball bearing type.
