Hyper Tuning Set Monkey 125

【SP武川 01-02-0052 Hyper Tuning Set Monkey 125 Engine Parts Takegawa】
■ Product Description

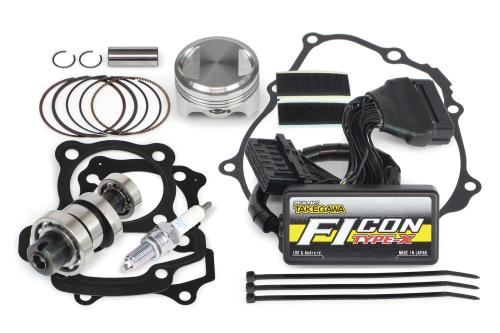

The Hyper Tuning Set includes a high-compression piston kit and FI-CON TYPE-X (injection controller).

■ Detailed Description
● High-compression piston kit
By replacing the piston, while maintaining the same displacement and using the stock cylinder head and cylinder, it is possible to increase output.
This piston was developed with meticulous attention to detail to achieve a higher compression ratio, more efficient combustion, and reduced friction, pursuing the optimal piston shape. High-rigidity forged aluminum material is used to withstand the higher compression ratio.
Bore diameter: 50mm (same as stock bore diameter)
Compression ratio: High-compression piston 12.5:1 (Stock piston 10.0:1)
*When installing the high-compression piston, the stock camshaft cannot be used. Additionally, when installing the high-compression piston, simultaneous installation of SP Takegawa Sports Camshaft and FI-CON TYPE-X is required.
*Requires high-octane gasoline.
● Sports Camshaft (N-10)
The optimal profile maximizes the performance of the stock cylinder head, improving output performance.
Installing it on a stock engine improves output in the high RPM range.
By removing the decompression parts from the stock camshaft and installing them on the Sports Camshaft, it becomes an auto-decompression specification.

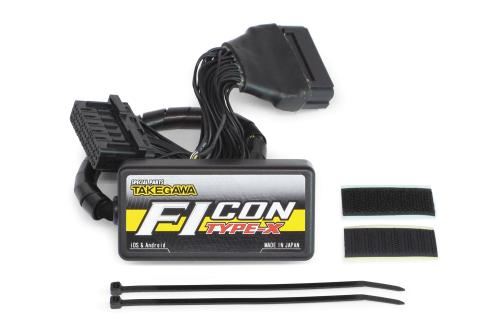

● FI-CON TYPE-X (Injection Controller)
This is an injection controller that can be connected to the genuine ECU with a coupler.
It comes pre-set with various maps tailored to each engine specification, so basic operation is complete and ready to ride simply by selecting the map that matches your big bore kit or throttle body specifications on your smartphone or PC.
It offers enough content for advanced users to enjoy, such as adjusting settings based on existing maps or creating new maps to their liking.
It can be connected to a PC or smartphone with the engine running, making it very convenient for settings. In addition to a tachometer screen and throttle opening graph screen, it also allows for engine temperature monitoring.
Equipped with a rev limit function.
Can be installed simultaneously with the genuine Honda immobilizer alarm.
● Regarding the installation of the high-compression piston kit
Due to the significant increase in engine output and torque with the installation of SP Takegawa's high-compression piston kit, the crankshaft experiences increased stress from twisting and deflection.
SP Takegawa recommends simultaneous installation of the crankshaft support adapter to reduce the load on the crankshaft.
The crankshaft support adapter enhances crankshaft durability by adding support with a ball bearing at the flywheel end of the crankshaft, thereby suppressing twisting and deflection.

■ Compatible Models
HONDA
Monkey 125 (JB03 / JB05-1000001～)

■ Notes
*The image is for illustration purposes only. It includes items of different sizes and colors.
*Product designs and specifications may change without prior notice. Please understand.
*As this product is made-to-order, cancellations after ordering are not possible.
*This is a made-to-order product, so delivery may take some time. Also, please note that the manufacturer may discontinue or change specifications without prior notice. Thank you for your understanding.
