Hyper Tuning Set with Big Throttle Body for Dax 125

【SP武川 01-02-0055 Hyper Tuning Set with Big Throttle Body for Dax 125 Engine Parts Takegawa】
■Product Description

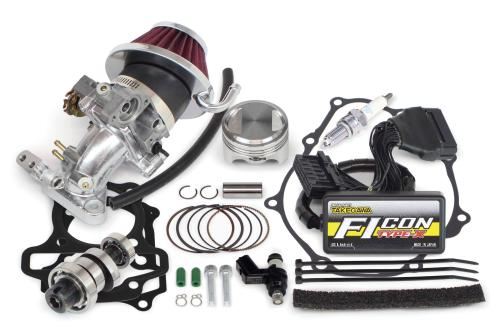

The Hyper Tuning Set (with Big Throttle Body) includes a high-compression piston kit, FI Con TYPE-X (injection controller), large-capacity injector, and big throttle body kit.

■Detailed Description
●High-Compression Piston Kit
By replacing the piston while keeping the stock displacement, stock cylinder head, and stock cylinder, it is possible to increase power output.
This piston was meticulously designed to achieve higher compression ratios, more efficient combustion, and reduced friction, pursuing the optimal piston shape.
High-rigidity aluminum forged material is used to withstand high compression ratios.
Bore diameter 50mm (same bore diameter as stock)
Compression Ratio High-Compression Piston 12.5:1 (Stock Piston 10.0:1)
*When installing the high-compression piston, the stock camshaft cannot be used. Also, when installing the high-compression piston, simultaneous installation of SP Takegawa's sports camshaft and FI Con TYPE-X is required.
*High octane gasoline specification.
●Sports Camshaft (N-10)
The optimal profile maximizes the performance of the stock cylinder head, improving power output. When installed on a stock engine, it improves output in the high RPM range.
By removing the decompression parts from the stock camshaft and installing them on the sports camshaft, it becomes an auto decompression specification.

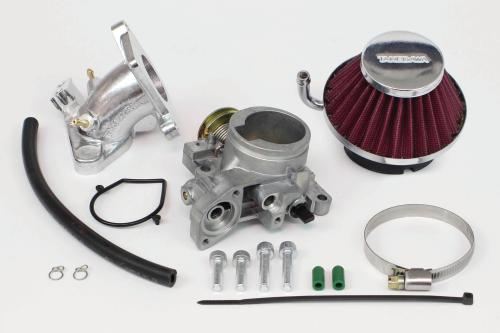

●Big Throttle Body Kit φ34 (for stock cylinder head)
This product is an original SP Takegawa big throttle body kit developed for SP Takegawa engine parts.
It can be compactly installed around the engine without altering the vehicle's silhouette.
Also, no processing of the cowl or wiring is required for installation.
An air filter with excellent intake efficiency is included.
*Cannot be used with stock engines. By adopting a φ34mm big throttle body, it maximizes the performance of SP Takegawa engine parts and enables power increase.

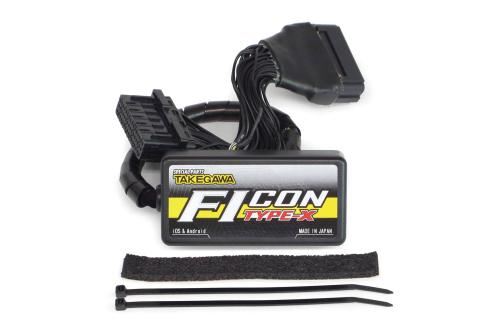

●FI Con TYPE-X (Injection Controller)
This is an injection controller that can be connected to the genuine ECU with a coupler.
It comes with preset maps for various engine specifications, so you can complete basic operations and start riding by simply selecting the map that matches your bore-up kit or throttle body specifications on your smartphone or PC.
It also allows advanced users to enjoy settings according to their preferences or create new maps based on existing maps.
It can connect to a PC or smartphone when the engine is running, and in addition to the tachometer screen and throttle opening graph screen, which are very convenient for setting, it can also monitor engine temperature.
Equipped with a rev limit function.
Can be installed simultaneously with the Honda genuine immobilizer alarm.
●Regarding the installation of the High-Compression Piston Kit
Due to the significant increase in engine output and torque with the installation of SP Takegawa's high-compression piston kit, the crankshaft experiences increased stress such as twisting and deflection.
To reduce the load on the crankshaft, SP Takegawa recommends simultaneous installation of the crankshaft support adapter.
The crankshaft support adapter supports the end of the crankshaft flywheel side with a ball bearing, thereby suppressing twisting and deflection and increasing the durability of the crankshaft.

■Compatible Models
HONDA
Dax 125 (JB04/JB06-1000001~)

■Notes
*The image is for illustration purposes only. It includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*This product is made-to-order, so cancellations after ordering are not possible.
*As this is a made-to-order product, delivery may take some time. Also, the manufacturer may discontinue the product or change specifications without notice. Please be aware.
