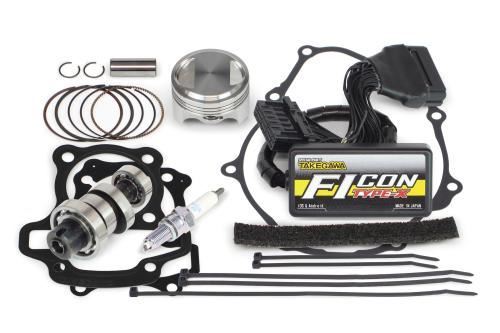

Hyper-Tuning Set

【Takegawa 01-02-0059 Hyper Tuning Set GROM Motorcycle Custom TAKEGAWA】
■Product Description
The "Hyper Tuning Set" allows for increased output by replacing the piston and camshaft without changing the displacement, and simultaneously installing the FI Con TYPE-X (injection controller).

【High-Compression Piston Kit】
By replacing the piston, output can be increased while maintaining the stock cylinder head and cylinder without changing the displacement.
This piston is designed with meticulous attention to detail to achieve high compression, efficient combustion, and low friction, pursuing an optimal piston shape. High-rigidity aluminum forged material is used to withstand high compression ratios.
Bore Diameter 50mm (same as stock bore diameter) Compression Ratio: High-Compression Piston 12.5:1 (Stock Piston 10.0:1)
When installing the high-compression piston, the stock camshaft cannot be used. Also, when installing the high-compression piston, simultaneous installation of SP Takegawa Sports Camshaft and FI Con TYPE-X is required.
This product requires high-octane gasoline.

【Sports Camshaft (N-10)】
Optimal profiles that maximize the performance of the stock cylinder head improve output performance. When installed in a stock engine, output in the high-revolution range is improved.
By removing the decomp parts from the stock camshaft and installing them on the sports camshaft, it becomes an auto-decompression specification.

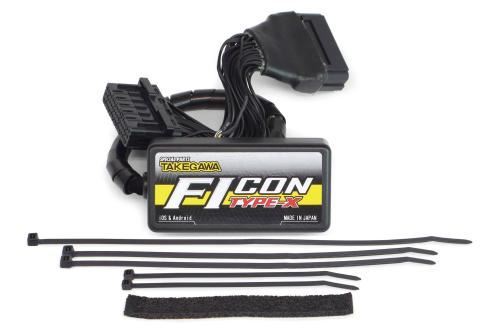

【FI Con TYPE-X (Injection Controller)】
This is an injection controller that can be connected to the genuine ECU with a coupler. It comes with preset maps for various engine specifications, so you can complete basic operations and ride by simply selecting the map that matches your bore-up kit or throttle body specifications on your smartphone or PC. It is also designed for advanced users, allowing them to enjoy setting adjustments based on existing maps or creating new maps. With the engine running, it can connect to a PC or smartphone, enabling monitoring of engine temperature in addition to a tachometer screen and throttle opening graph screen, which are very convenient for settings. It is equipped with a rev limit function.
Can be installed simultaneously with the Honda genuine immobilizer alarm.
To use FI Con TYPE-X, a compatible PC or smartphone is required. If these conditions are not met, it cannot be used. Also, an internet connection is required to download the software and app.
Please note that the app is a paid application.

■Compatible Models
GROM (JC92-1100001～)

■Precautions
※The installation of SP Takegawa's high-compression piston kit significantly increases engine output and torque, thus increasing the stress on the crankshaft, such as twisting and deflection. SP Takegawa recommends simultaneous installation of a crankshaft support adapter to reduce the load on the crankshaft.
※The crankshaft support adapter adds ball bearing support to the end of the crankshaft flywheel side, suppressing twisting and deflection, and improving crankshaft durability.
Crankshaft Support Adapter for GROM (JC92-1100001～) 01-10-0150
※Images are for illustration purposes only. Includes products with different sizes and colors.
※Product design and specifications are subject to change without notice. Please understand.
