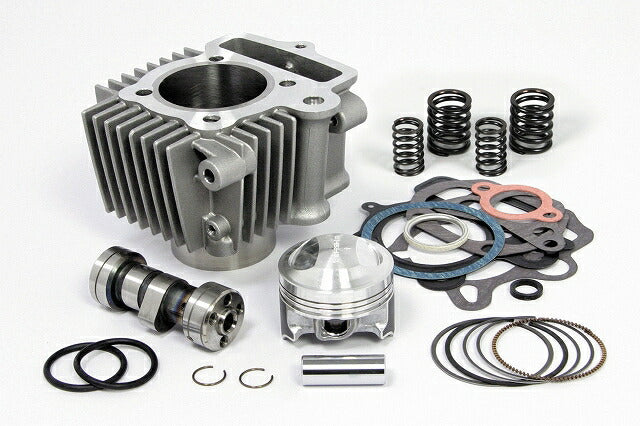

S-Stage Bore-Up Kit (88cc) for DAX70 Engine

This is a popular light bore-up kit for street use that can be easily assembled by yourself.
The S-Stage kit allows you to increase the displacement while keeping the stock cylinder head and crankshaft.
Includes Super Sports Camshaft: This camshaft features an optimal cam profile designed to maximize the performance of the stock cylinder head.
Cannot be installed on cylinder heads other than the stock one.
Takegawa does not sell recommended mufflers for the DAX70.
When installing the S-Stage on a DAX70, you can use the Bomber Muffler (04-02-043) designed for the DAX50.
(When used, it will not be JMCA certified and cannot be used on public roads.)
For the carburetor, please use the Keihin PD22 Carburetor Kit (03-05-112) for Regular/R-Stage.
88cc Bore diameter 52mm Compression ratio 12.0:1
Cylinder: H cylinder
Included camshaft: Sports camshaft
Compatible models
: Vehicle frames with 6V DAX70 engine, Frame NO.
ST70-10024561003655
ST70-30084013016095
ST70-40169614030165
ST70-50161015042430
ST70-60000106015109
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
