S-Stage Bore Up Kit (113cc) Cub 90 CD90 Cub 100EX

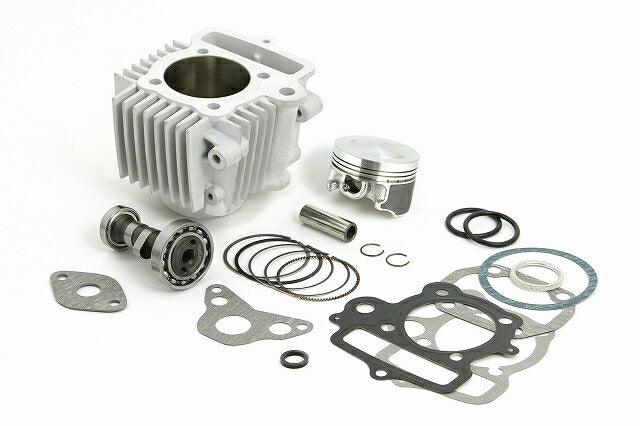

This kit includes a big bore piston, cylinder, camshaft, and gaskets for normal heads.
The 105cc/SCUT126cc can be installed without modifying the crankcase.
The structure of the SCUT126cc is patented.
A temperature sensor can be attached to the cylinder, allowing you to measure the cylinder temperature by purchasing a thermometer separately.
HA Cylinder: M5 temperature sensor
*Cannot be installed on anything other than a normal head.
*Installing the 113cc kit requires modification of the crankcase.
Takegawa can also perform crankcase modifications.
*Since the SCUT126cc has a displacement of 125cc or more, it cannot be registered as a light motorcycle.
*Takegawa does not sell big bore carburetor kits for CD90 (with dedicated manifold).
Displacement: 113cc
Cylinder: φ54HA cylinder (all-aluminum ceramic plated cylinder with excellent durability, airtightness, and heat dissipation)
Compatible models
: CD90 (HA03-1100005~): Cub 100EX (HA05-0000037~0002036 / HA05-1000002~/HA06-0000001~)
: Super Cub 90 (HA02-1800001~)
*For Cub 100EX, some crankcase modification is required even with the 105cc kit.
Please refer to the instruction manual.
*For the 113cc, boring of the crankcase is required for both Super Cub 90 and Cub 100EX.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
