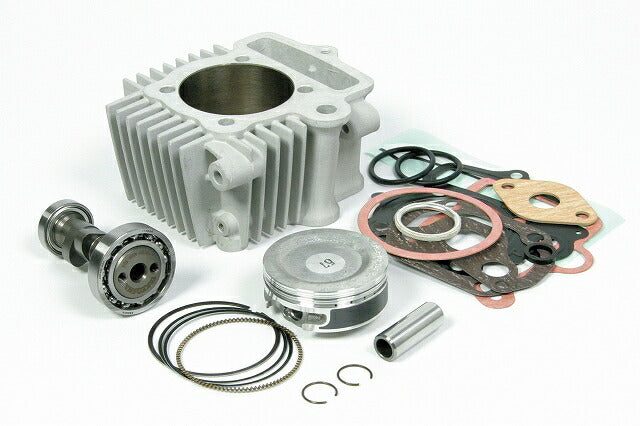

S-Stage Bore Up Kit (φ57mm/106cc/SCUT) for 12V Monkey/XR50R/CRF50F

S-Stage allows you to increase the engine displacement while keeping the normal cylinder head and crankshaft.
Furthermore, the S-Stage 88cc offers two options: "Standard" for high-octane gasoline and "eco" for regular gasoline.
The conventional Standard model had a compression ratio of 11.5:1 and recommended high-octane gasoline, but the S-Stage eco has a compression ratio of 10.5:1, making it possible to use regular gasoline.
This can reduce fuel costs.
Displacement: 106cc
Type: Standard
Cylinder: φ57 Scat Cylinder (all-aluminum ceramic-plated cylinder with excellent durability, airtightness, and heat dissipation)
Included Camshaft: Without decompression
: 12V Monkey/Gorilla (Z50J-2000001~ / AB27-1000001~1899999)
: Monkey BAJA (Z50J-1700001~)
*If installing a normal carburetor on a V cylinder, the cylinder will interfere, so it will need to be shaved down.
Compatible vehicles
: CRF50F (AE03-1400001~)
: XR50R (AE03-1000001~)
: Magna 50 (AC13-1000010~)
: CD50 (CD50-1500001~)
: CL50 (CD50-4000001~)
: Benly50S (CD50-2200005~)
: 12V DAX50 (AB26-1000001~)
: JAZZ (AC09-1000030~)
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
