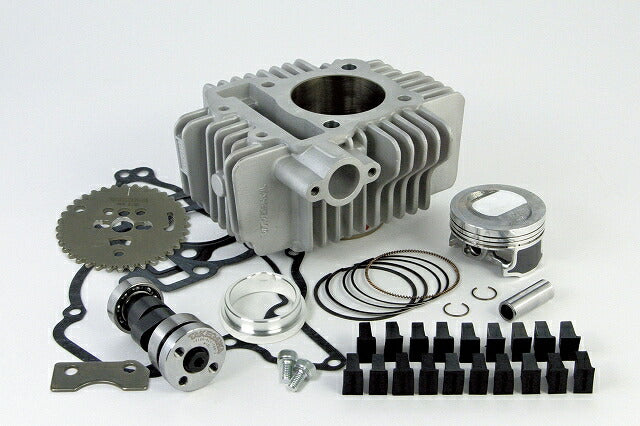

S-Stage Big Bore Kit (138cc) KLX110L/Thailand KSR110

By using the stock cylinder head and crankshaft, you can increase the displacement to 138cc by changing the cylinder and piston.
The cylinder adopts a ceramic-plated cylinder with excellent airtightness, durability, and heat dissipation.
Since Takegawa's big bore cylinder allows for the installation of a stick temperature sensor, you can measure the cylinder temperature by purchasing a separate thermometer.
138cc Bore diameter 59mm Compression ratio 12.3:1
Compatible models
: KLX110L (LX110D-A72046)
: Asian KSR110 (JKAKL110CCDA00058)
: KSR PRO (KL110EEF) (JKAKL110EEDA88121)
Since the included cam sprocket and sport camshaft will be installed, the decompression mechanism will be removed.
If the 138cc big bore kit is installed, it cannot be registered as a Class 2 moped.
Changes to the carburetor and muffler are required.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
