Hyper S-Stage N-20 Big Bore Kit 178cc Big Throttle Body Z125 Pro

【SP武川 01-05-5482 Hyper S-Stage N-20 Bore Up Kit 178cc Big Throttle Body Z125 Pro Engine Parts Takegawa】
■Product Description

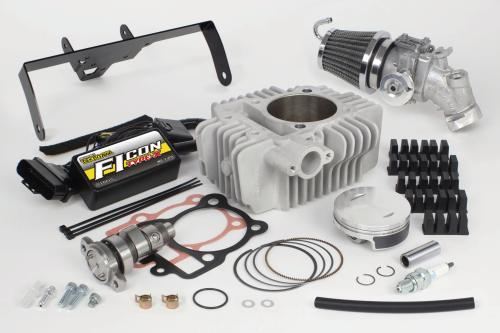

The Hyper S-Stage N-20 Bore Up Kit is a great value set that includes the S-Stage N-20 Bore Up Kit, FI Con TYPE-e (injection controller), big throttle body kit, and spark plug.
You can enjoy torqueful output performance that is not found in normal engines.
N-20 camshaft included.

■Detailed Description
●All-aluminum ceramic-plated cylinder
The cylinder uses an all-aluminum ceramic-plated cylinder that boasts excellent durability, airtightness, and heat dissipation.

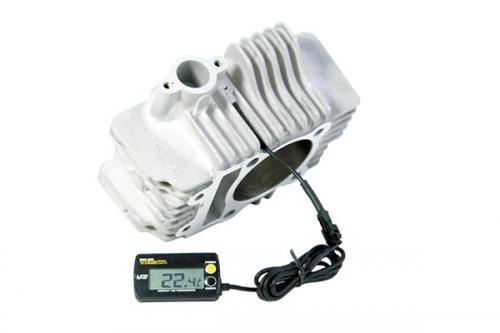

A stick temperature sensor can be installed on the cylinder.
By purchasing a SP Takegawa Compact LED Thermometer with a stick temperature sensor, you can measure the cylinder temperature.
Compression ratio 178cc 11.5:1
Bore diameter 178cc 67mm
Stroke 50.6mm (normal)

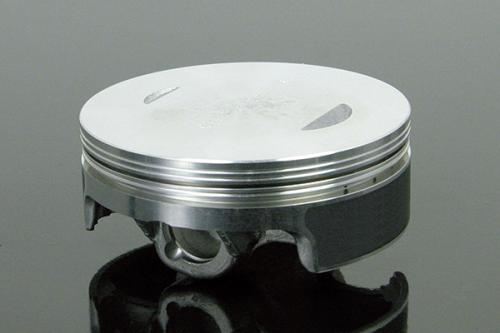

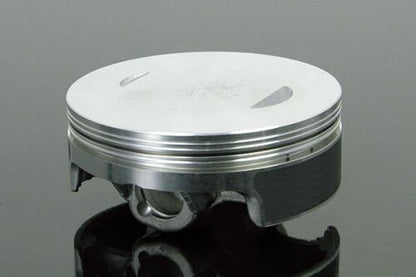

●Skut Piston
The piston skirt of the aluminum cast piston is molybdenum coated to improve initial break-in.
●N-20 Camshaft included
Optimal profile that maximizes the performance of the normal cylinder head improves output performance.
Includes an automatic decompression mechanism similar to the normal one.

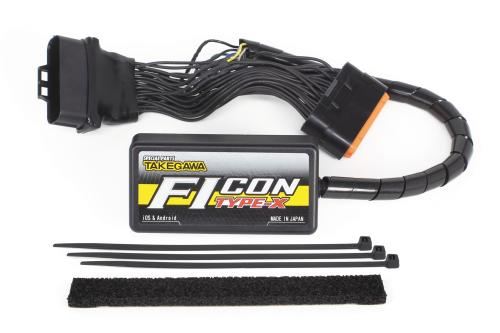

●FI Con TYPE-X (injection controller)
When installing SP Takegawa bore up kits or muffler parts, the air-fuel ratio will deviate significantly from the ideal, so it is necessary to correct the fuel injection time with the FI Con.
It can be installed by simply disconnecting the coupler of the genuine ECU and connecting it.
The FI Con TYPE-X has multiple data settings pre-configured by SP Takegawa to match SP Takegawa engine parts, so you can easily select, change, and correct setting data using a PC or smartphone according to your engine specifications.
The injection time can be adjusted up to a maximum increase of 5000μs and a maximum decrease of 7500μs, making it widely applicable from normal displacement to bore up vehicles.
It also has a monitoring function for engine RPM, engine temperature, throttle opening, and injector opening/closing rate using a PC or smartphone, making it very convenient for setting.

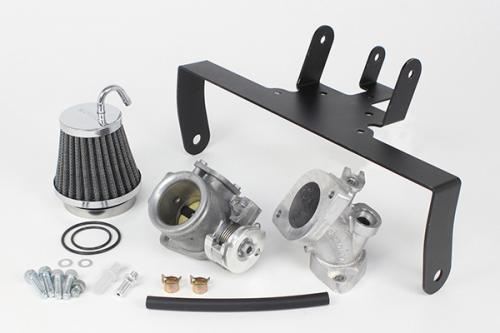

●Big Throttle Body Kit
Newly designed SP Takegawa original big throttle body kit (φ34)
This big throttle body kit is for vehicles equipped with an SP Takegawa sport camshaft or S-Stage bore up kit, along with an SP Takegawa FI Con TYPE-X (injection controller).
By installing it, you can achieve improved output performance in the high RPM range and engine characteristics that rev smoothly, which are not available with the normal throttle body specifications.
●Air filter for big throttle body (with blow-by union) included
●SP Takegawa original inlet pipe (for normal cylinder head) included
●Shroud stay (steel, black painted)
The left and right shrouds can be fixed with a fitting similar to the genuine one.
In addition, the shroud stay allows for the installation of an SP Takegawa oil cooler, and by purchasing a separate SP Takegawa dedicated oil cooler kit, the oil cooler can be housed within the shroud.
To install the SP Takegawa shroud stay exclusive oil cooler kit, simultaneous installation of an SP Takegawa special clutch cover is required.

■Compatible Models
Kawasaki
Z125 PRO (BR125H-A02621～A16470)
*Vehicles from the 2019 model year and later are not compatible due to unconfirmed FI Con TYPE-X.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications may change without notice. Please understand.
*Since the displacement will be 125cc or more, it cannot be driven on public roads under light motorcycle registration. It is for competition only.
*This product is made to order, so cancellations after ordering are not possible.
*Due to made-to-order, delivery of this product will take time. Also, there may be cases where the manufacturer discontinues the product or changes specifications without prior notice. Please be aware of this in advance.
