50mm Stroker Crankshaft Kit 106cc R-Type Monkey Gorilla Dax 50 Magna 50 CRF50F XR50R

【SP Takegawa 01-10-0142 50mm Stroke Up Crankshaft Kit 106cc R-Type Monkey Gorilla Dax50 Magna50 CRF50F XR50R Takegawa】
■Product Description
50mm stroke-up crankshaft with X-section connecting rods that achieve high strength despite their light weight.

■Detailed Description
●X-section connecting rod
Forged material is machined to form an X-section. This reduces weight while ensuring sufficient strength, significantly improving the diffusion of buckling stress and torsional rigidity.
The surface is shot-peened.
●Strengthening of the journal section
A special bearing with an enlarged inner diameter for the crankshaft's journal bearing is used.
This allows the shaft diameter of the journal section, where stress concentrates on the crankshaft, to be increased from 20mm to 22mm, thereby strengthening the shaft.
●Product Configuration

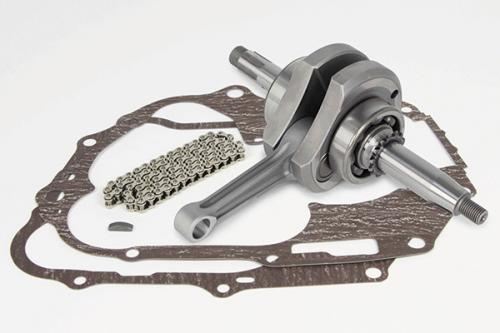

Crankshaft, woodruff key, crankcase gasket, R. crankcase gasket, DieHard α cam chain 82L

■Compatible Models
HONDA
12V Monkey/Gorilla (Z50J-2000001~/AB27-1000001~1899999)
Monkey BAJA
Monkey R/RT
12V DAX50
MAGNA50
CRF50F/XR50R (All models)
CD50 (CD50-1500001~)
CL50 (CD50-4000001~)
Benly50S (CD50-2200005~)
*Compatible vehicles vary depending on the SP Takegawa kit it is combined with.

■Notes
*Images are for illustration purposes only. May include products of different sizes or colors.
*Product design and specifications are subject to change without notice. Please understand.
*This product must be used in combination with an SP Takegawa head kit, camshaft, and cylinder kit. It cannot be used for installation in a stock engine or in combination with products from other manufacturers.
*The compatible vehicles for this product vary depending on the SP Takegawa kit it is combined with. Please confirm the compatible kit components and vehicles before purchasing.
*The crankshaft for this product is R-type. Please confirm the crankshaft shape in the detailed diagram or the compatible frame number, etc., before purchasing.
*When replacing the crankshaft, special tools for engine disassembly are required.
