D.I.D ダイハードα Cam Chain DID25HT-DHA Plated 88L

【SP Takegawa 01-14-0004 D.I.D Diehard Alpha Cam Chain DID25HT-DHA Plated 88L Engine Parts Takegawa】
■Product Description

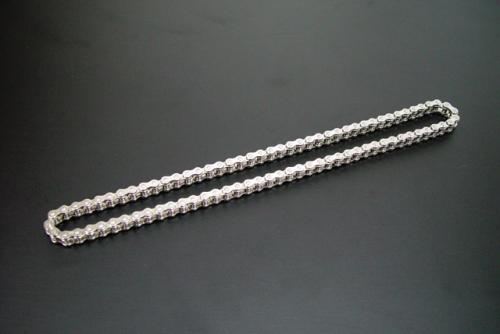

This is the D.I.D Diehard Alpha Cam Chain (plated), the pinnacle of 25-size cam chains.
It is a high-precision solid bush chain with a seamless, smooth surface and excellent roundness, offering superior rigidity and wear resistance.
The solid bush prevents the barrel-shaped deformation of the bush that occurs when it is pressed into the link plate, forming an optimal contact bearing surface between the pin and the bush.
Compared to standard products, it achieves a dramatic performance improvement with a wear life 1.8 to 4 times longer.
The Diehard Alpha treatment forms an extremely hard film on the surface of the pin, and the film has even higher hardness carbides dispersed within it.
It will not be defeated even if hard foreign particles are mixed in from the outside.
The plate thickness is approximately 1.4 times thicker, and the maximum allowable load is set to 1.5 times. (For Monkey)
Uses a 1.0mm plate compared to the standard plate thickness of 0.72mm.

■Specifications
Color: Plated
Size: 88L
Average Tensile Strength: 414kN → 5.88kN
Maximum Allowable Tension: 0.735kN → 1.07kN

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product designs and specifications are subject to change without notice. Please understand.
