Super Cam Chain Tensioner Monkey Gorilla Chaly Dax50/70 Magna50 Little Cub

【SP Takegawa 01-14-0012 Super Cam Chain Tensioner Monkey Gorilla Chaly Dax 50/70 Magna 50 Little Cub Engine Parts Takegawa】
■Product Description

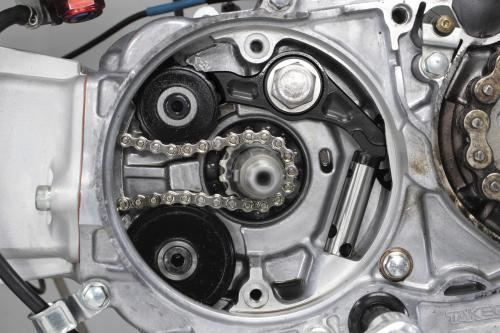

High-strength cam chain tensioner that maintains proper tension and followability for the cam chain.

■Detailed Description
The SP Takegawa tensioner arm is precisely machined from high-strength extra super duralumin, increasing its thickness to enhance the strength of the arm body and further enlarge the contact area with the push rod.
This reduces the caving and damage to the rubber at the tip of the push rod, significantly extending the life of the push rod.

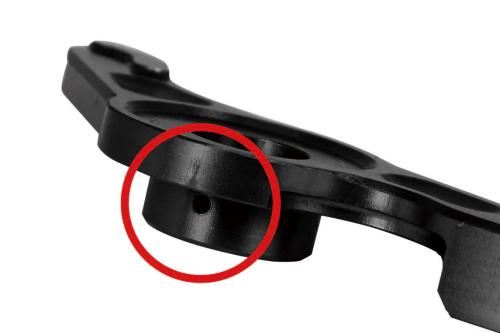

An oil hole is provided in the arm body to lubricate the moving parts.
The arm surface is hard anodized.
Since the stock tensioner arm is formed from sheet metal, there is less contact area with the push rod, and the rubber at the tip of the push rod caves in to the shape of the sheet thickness.
Also, prolonged use with a high-power engine can severely deform the stock tensioner arm and damage the push rod head.
In this case, proper tension is not applied to the cam chain, which can lead to engine trouble.
The SP Takegawa tensioner arm is precisely machined from high-strength extra super duralumin, increasing its thickness to enhance the strength of the arm body and further enlarge the contact area with the push rod.
This not only strengthens the tensioner arm but also reduces the caving and damage to the rubber at the tip of the push rod, significantly extending the life of the push rod.
Additionally, an oil hole is provided in the arm body to lubricate the moving parts.
While the stock tensioner arm complete unit weighs approximately 37g, the SP Takegawa tensioner arm complete unit weighs approximately 28g, achieving a weight reduction of approximately 24%.
*The weight comparison does not include the roller and shim ring.

■Compatible Models
HONDA
Monkey/Cub series engines
Monkey/Gorilla (Z50J-1000001~/AB27-1000001~1899999)
Monkey R/RT
Monkey (FI)
Chaly
DAX50/70
MAGNA50
Little Cub
Cub series engines such as Super Cub (C50-N0000002~/AA01-1000001~) *Excluding AA04, JA07 and later
CD50 (CD50-1000001~)
CL50 (CD50-4000001~)
Benly50S (CD50-2200005~)

■Notes
*The image is for illustration purposes only. It includes products of different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*Always use genuine or SP Takegawa push rod heads with appropriate damper effect.
