Super Oil Pump Kit for Ape 50/100, Dream 50, XR100R, Ape [FI], Ape 100D

This is a high-capacity oil pump kit that can be installed on APE series / NSF100 / Dream 50 engines.
Compared to the stock oil pump, the discharge volume is increased by 25%.
By circulating more oil to engines that generate more heat due to tuning such as displacement increase, cooling is further enhanced.
*Partial processing of the orifice part is required.
By installing this product simultaneously with the Takegawa 5-disc reinforced clutch kit 02-01-0310, the primary reduction ratio is changed (approximately 16% higher gearing), and the oil pump rotation speed can be increased, further increasing the oil discharge volume.
Comparison of discharge volume with stock oil pump: APE 50: 106% increase, APE 100: 25% increase, NSF100: 25% increase.

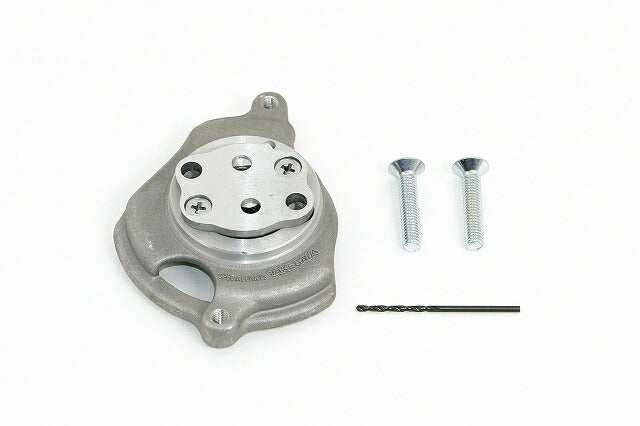

Includes flat head screws and a φ2.5mm drill bit.
*Installation may not be possible on vehicles equipped with clutch covers other than the stock clutch cover or Takegawa clutch cover.
Compatible vehicles:
APE50 (AC16-1000001～1599999)
APE50 (FI) (AC16-1600001～/AC18-1000001～)
XR50 Motard (AD14-1000001～)
APE100 (HC07-1000001～/HC13-1000001～)
XR100 Motard (HD13-1000001～)
CRF100F (HE03-2400001～)
XR100R (HE03-2100001～)
NSF100
Dream 50 (AC15-1000001～)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
