Super Oil Pump Kit with Relief Valve Function/No Tools Required for Monkey, Gorilla, Magna 50, Dax 50

【SP Takegawa 01-16-0069 Super Oil Pump Kit with Relief Valve Function / No Tool Monkey Gorilla Magna 50 Dax 50 Engine Parts Takegawa】
■Product Description
A super oil pump kit that employs a relief valve function in the pump body to achieve optimal oil discharge.

■Detailed Description
SP Takegawa has adopted an approximately 1.8 times increase in oil discharge compared to normal, in order to optimize the amount of oil delivered to each part of the engine, the oil pressure, and the oil level in each part.
By circulating the appropriate amount of oil, it is possible to reduce the burden on the moving parts, improve cooling performance, and ensure an oil film in the lubricating parts.
Furthermore, by incorporating a relief valve function into the oil pump body, oil pressure control becomes possible, which reduces the burden on the engine caused by increased oil pressure and achieves stable oil circulation.
●Essential item for high-spec engine vehicles
For high-spec engine vehicles equipped with SP Takegawa cylinder heads, etc., where high revolutions are frequently used, the oil level may become unstable, and there is a risk of air cavitation.
By installing this product, the oil level will be stable even at high revolutions, reducing power loss and allowing the engine to fully demonstrate its performance.
●Adoption of relief valve function for oil pressure control
SP Takegawa's super oil pump increases the discharge volume by approximately 1.8 times compared to stock, and to ensure oil pressure during unstable idling and to cope with changes in oil pressure as revolutions increase, a relief valve function is installed that opens only when the oil line reaches a certain oil pressure.
This suppresses excessive oil pressure rise during revolutions in cold conditions, preventing damage to moving parts and seal parts.
Furthermore, during high engine revolutions, it prevents the discharge of more oil than necessary, reducing power loss and stabilizing the oil level.
●Easy installation by simply replacing the stock oil pump
This product can be easily installed by simply replacing the stock oil pump, without the need to divert, disassemble, or assemble parts from the stock oil pump.

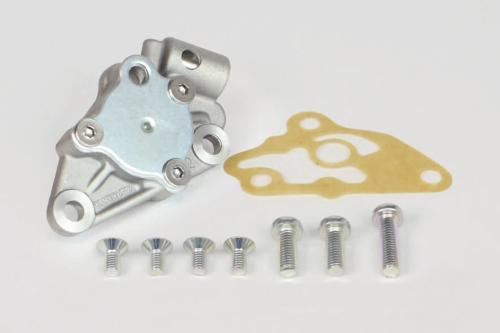

In addition, since gaskets and fixing screws are included in the kit, there is no need to reuse stock parts or check for wear and damage, and replacement can be done with new parts.

■Compatible Models
●Manual Clutch Vehicles
12V Monkey Gorilla (Z50J-2000001~/AB27-1000001~1899999)
Monkey (FI) (AB27-1900001~)
Monkey BAJA/R/RT (All models)
MAGNA50 (AC13-1000010~)
CD50 (CD50-1500001~)
CL50 (CD50-4000001~)
Benly50S (CD50-2200005~)
CD90 (HA03-1100005~)
JAZZ (AC09-1000030~)
●Centrifugal Clutch Vehicles
Cub 100EX (HA05-0000037~0002036/HA05-1000002~/HA06-0000001~)
●Vehicles that can be installed by installing SP Takegawa Special Clutch Kit
12V DAX50 (AB26-1000001~)
XR50R (AE03-1000001~)
CRF50F (AE03-1400001~)
CRF70F (DE02-1700001~)
XR70R (DE02-1000001~)

■Notes
※The image is for illustration purposes only. It includes products with different sizes and colors.
※Product design and specifications are subject to change without notice. Please be aware.
※It cannot be installed on centrifugal clutch vehicles other than the target vehicle (Cub 100EX) due to interference.
※The orifice part of the crankcase must be processed. (Processing method is described in the instruction manual)
※Simultaneous installation with the SP Takegawa old model special clutch kit (type without oil filter mounting part) is not possible due to interference.
※R. crankcase cover gasket is not included. It will be required for replacement, so please purchase it separately. The gasket shape differs depending on the vehicle.
