Special Clutch Kit for Normal Main Shaft - Dax 50

【SP武川 02-01-0232 Special Clutch Kit for Normal Main Shaft DAX50 Engine Parts Takegawa】
■Product Description
The structure that allows the special clutch kit to be installed without removing the engine from the vehicle is patented.
The thermostat mounting section and oil line structure of the die-cast clutch cover are patented.

■Detailed Description
●Die-cast Clutch Cover
The clutch cover and oil filter cover are made of die-cast aluminum.
Surface treatment: Buffed clear coating finish
Oil can be taken out for the oil cooler.
An oil cooler kit for the die-cast clutch cover is available.
A highly reliable cartridge paper type is used for the oil element.
Glass is used for the engine oil check window in consideration of durability.
A separate clutch cable receiver is adopted.
Patented structure: Thermostat mounting section and oil line structure
●Thermostat can be installed
A thermostat unit using a shape memory alloy spring can be installed as an optional part.
Installing it prevents overcooling.
The thermostat unit is sold separately.
●Special Clutch
A damper is incorporated into the primary driven gear to reduce shock during clutch engagement.
Since the clutch body is mounted on the transmission main shaft, friction loss of the crankshaft is reduced, improving crankshaft durability and throttle response.
With 5 friction discs, it is compatible with high-power engines for both street and race use.
Patented structure
: Special clutch mounting structure for normal main shaft

■Compatible Models
HONDA
12V DAX50 (AB26-1000001~)
*For normal crankshaft, normal transmission

■Notes

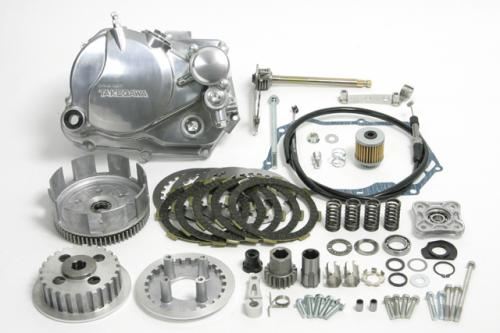

*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without notice. Please understand.
*This product is exclusively for normal main shafts and normal transmissions. It cannot be installed on vehicles equipped with a cross mission.
*A separate clutch lever ASSY. must be purchased.
*Normal mufflers and normal air cleaner cases cannot be installed.
*This product is made to order, so cancellations after ordering are not possible.
*This product is made to order, so it may take some time for delivery. In addition, the manufacturer may discontinue the product or change its specifications without notice. Please be aware of this beforehand.
