Special Clutch Kit Standard Clutch Specification Magna 50

【SP Takegawa 02-01-0239 Special Clutch Kit, Standard Clutch Specification, Magna 50 Engine Parts, Takegawa】
■Product Description

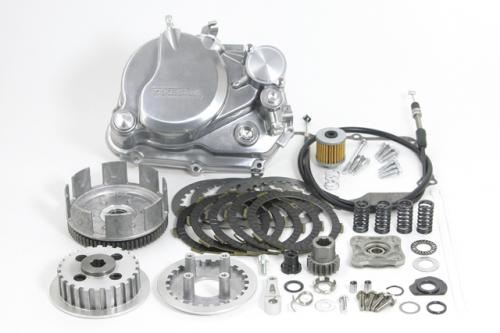

A die-cast special clutch cover and a special clutch for 5-speed cross transmission (standard clutch specification) are included.
To install this product, simultaneous installation of SP Takegawa's 5-speed cross transmission kit is required.

■Detailed Description
●Aluminum Die-cast Clutch Cover (Buff Polished Clear Coating)
Patented structure: Thermostat mounting part and oil line structure
The clutch cover is made of die-cast aluminum.
The surface treatment is buff polished clear coating.
Oil can be extracted to the oil cooler.
An optional thermostat unit using shape memory alloy springs can be installed. This prevents overcooling.
The thermostat unit is sold separately.
A highly reliable cartridge-type paper oil element is used.
Durable glass is used for the engine oil check window.
A separate clutch cable receiver is used.
●Standard Clutch (for SP Takegawa 5-speed Cross Transmission)
With a normal clutch, the clutch body is attached to the normal crankshaft axis, but the SP Takegawa special clutch uses a secondary clutch attached to the mission side main shaft.
This reduces the load on the crankshaft. It also allows for weight reduction of the crankshaft axis, resulting in nimble throttle response.
A damper is incorporated into the primary driven gear to reduce shock when the clutch is engaged.
With 5 friction discs, it supports high-power engines for both street and race use.
A highly durable and strong aluminum die-cast lifter plate is used.

■Compatible Models
HONDA
MAGNA50 (AC13-1000010～)

■Notes
※Images are for illustration purposes only. They may include products with different sizes or colors.
※Product design and specifications may change without prior notice. Please be aware.
※Simultaneous installation of SP Takegawa's 5-speed cross transmission is required.
※As this product is made-to-order, cancellations after ordering are not possible.
※This is a made-to-order product, so it will take some time for delivery. Also, without prior notice, the manufacturer may discontinue the product or change specifications. Please be aware.
