Special Clutch Kit Standard Clutch Specification CRF50F CRF70F XR50R XR70R

【SP武川 02-01-0243 Special Clutch Kit Standard Clutch Specification CRF50F CRF70F XR50R XR70R Engine Parts Takegawa】
■Product Description

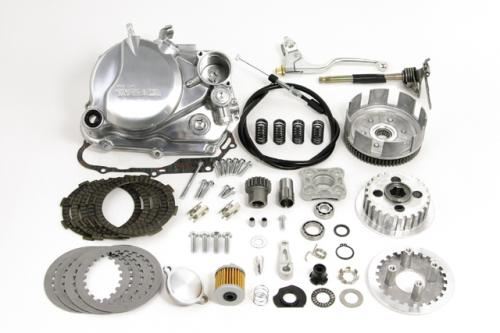

This kit includes a die-cast special clutch cover and a special clutch (standard clutch specification) for the stock main shaft.
Thanks to SP Takegawa's patented structure, there is no need to remove the engine or disassemble the crankcase, allowing you to convert to a special clutch while retaining the stock main shaft.
Clutch lever ASSY. included.
For CRF50F and XR50R, the top bridge and stock handlebars must be replaced with a φ22.2 handlebar pipe.

■Detailed Description
●Aluminum Die-cast Clutch Cover (Buffed and Clear Coated)
Patented structure: Thermostat mounting part and oil line structure
The clutch cover is made of aluminum die-cast.
The surface finish is buffed and clear coated.

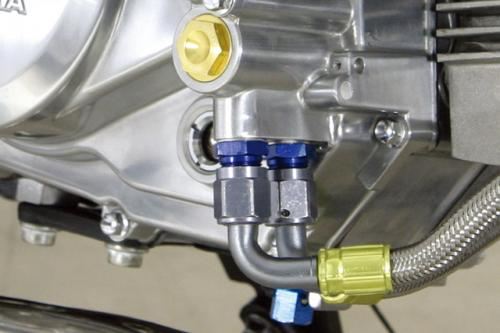

Oil can be taken out to the oil cooler.
An optional thermostat unit using a shape memory alloy spring can be installed. This prevents overcooling.
The thermostat unit is sold separately.

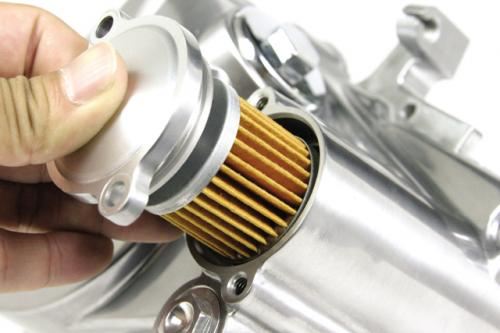

A highly reliable cartridge-type paper oil element is used.
Durable glass is used for the engine oil check window.
An integrated clutch cable receiver is adopted.

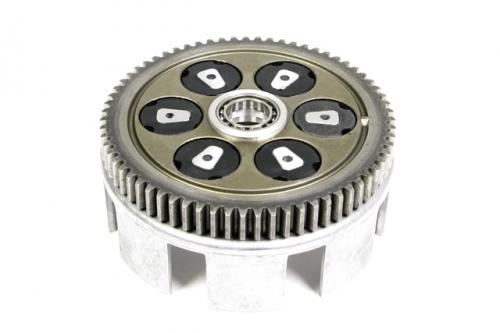

●Standard Clutch (for stock main shaft)
By using a patented adapter for the stock main shaft, it is possible to convert to a secondary side clutch while retaining the stock main shaft.
This reduces the load on the crankshaft. Furthermore, it allows for weight reduction of the crankshaft axis, resulting in sharper throttle response.
A damper is built into the primary driven gear to reduce shock when engaging the clutch.
With 5 friction discs, it is compatible with high-power engines for both street and race use.
A highly durable and strong aluminum die-cast lifter plate is used.

■Compatible Models
HONDA
CRF50F (AE03-1400001～)
XR50R (AE03-1000001～)
CRF70F (DE02-1700001～)
XR70R (DE02-1300001～)
*Cannot be used for XR70R frame NO/DE02-1299999 or earlier, as parts are different.
*Models with white fuel tank and front/rear fenders.

■Notes
*Images are for illustration purposes only. Includes products of different sizes and colors.
*Product designs and specifications are subject to change without notice. Thank you for your understanding.
*This product is for stock main shafts only. Cannot be installed on vehicles equipped with a close-ratio transmission.
*This product is made-to-order, so cancellations after ordering are not possible.
*As this product is made-to-order, it may take some time for delivery. Also, the manufacturer may discontinue the product or change specifications without notice. Thank you for your understanding.
