Special Clutch Kit Standard Clutch Specification CRF50F CRF70F XR50R XR70R

【SP武川 02-01-0256 Special Clutch Kit, Standard Clutch Specification for CRF50F CRF70F XR50R XR70R Engine Parts Takegawa】
■Product Description

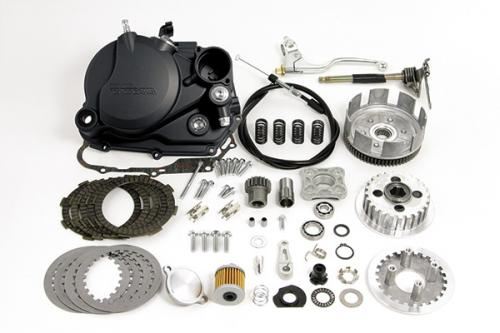

This kit includes a die-cast special clutch cover and a special clutch (standard clutch specification) for the normal main shaft.
Thanks to SP Takegawa's patented structure, there is no need to remove the engine or disassemble the crankcase, allowing you to convert to a special clutch while retaining the normal main shaft.
Clutch lever ASSY. included.
For CRF50F and XR50R, the top bridge and normal handlebars must be replaced with a φ22.2 handlebar pipe.

■Detailed Description
●Aluminum Die-cast Clutch Cover (Black Painted)
Patented structure: Thermostat mounting section and oil line structure
The clutch cover is made of aluminum die-cast.
The surface is finished with black paint.
Oil can be extracted for an oil cooler.
A thermostat unit using shape memory alloy springs can be optionally installed. This prevents overcooling.
The thermostat unit is sold separately.
A highly reliable cartridge-type paper oil element is used.
Durable glass is used for the engine oil check window.
An integrated clutch cable receiver is adopted for the cover.
●Standard Clutch (for Normal Main Shaft)
For the normal main shaft, by using a patented adapter, it is possible to change to a secondary clutch while retaining the normal main shaft.
This reduces the load on the crankshaft. It also allows for a lighter crankshaft axis, resulting in sharper throttle response.
The primary driven gear incorporates a damper to reduce shock during clutch engagement.
With five friction discs, it is compatible with high-power engines for both street and race use.
A highly durable and strong aluminum die-cast lifter plate is used.

■Compatible Models
HONDA
CRF50F (AE03-1400001～)
XR50R (AE03-1000001～)
CRF70F (DE02-1700001～)
XR70R (DE02-1300001～)
*Cannot be used for XR70R frame numbers up to DE02-1299999 due to different parts.
*Models with white fuel tank and front/rear fenders.

■Notes
*Images are for illustration purposes only. Products with different sizes and colors are included.
*Product designs and specifications are subject to change without notice. Please understand.
*This product is exclusively for normal main shafts. It cannot be installed on vehicles equipped with a cross mission.
*This product is made to order, so cancellations after ordering are not possible.
*As this is a made-to-order product, delivery may take some time. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
