Special Clutch Kit (Hydraulic) Z125 Pro

【SP武川 02-01-0421 Special Clutch Kit (Hydraulic) Z125 Pro Engine Parts Takegawa】
■Product Description

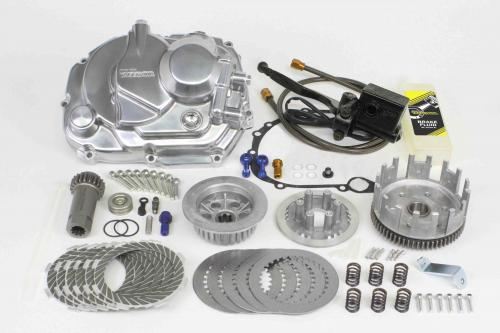

This is an all-in-one package that combines a special clutch cover with a structure not found in the genuine clutch cover, and a 6-disc reinforced clutch kit.
We have set a special discounted price for the set, which is more economical than purchasing them individually.

■Detailed Description
●Special Clutch Cover (Hydraulic Type)
The cover body is made of die-cast aluminum, buffed, and then clear-coated for a beautiful finish.
The cover's completely different shape and surface treatment from the stock clutch cover give the engine a striking appearance and enhance the vehicle's aesthetics.
The clutch cover features the SP Takegawa logo.

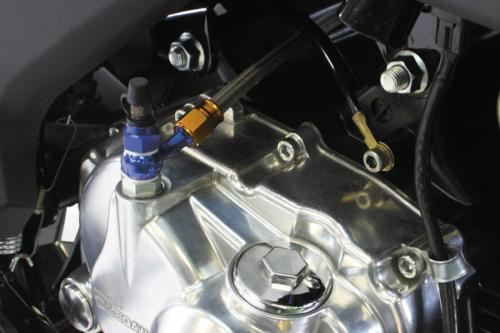

●Hydraulic Type
The manual hydraulic system further improves clutch operability compared to the wire type, reducing fatigue from clutch work.
The hydraulic kit includes a quick-release type 2-way quick master cylinder that allows for repositioning of the rearview mirror holder.
This product features a clutch cover structure that can be used with both manual wire type and hydraulic type systems.

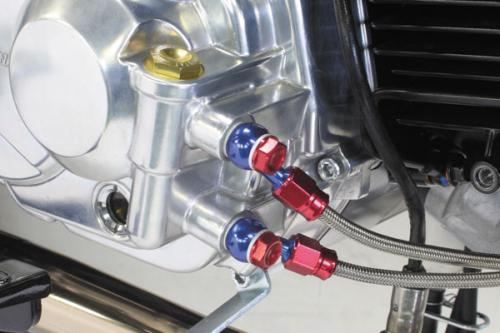

●Standard Oil Take-off Port
The clutch cover body is equipped with an oil take-off port, allowing oil to be taken out for an oil cooler.
If the oil take-off port is not used, the included blind plug should be used.
●Engine Oil Sight Glass
Unlike the stock clutch cover, a sight glass is provided to check the engine oil level.
The sight glass uses highly durable glass.
●Large Filler Cap (Die-cast Aluminum, Chrome-plated Finish)
The larger oil filler opening compared to the stock one makes oil filling easier.
●Patented Clutch Cover Structure
Thermostat mounting section and oil line structure.
It employs SP Takegawa's patented structure that allows for the installation of a thermostat (sold separately).
The original oil line structure, when combined with a thermostat unit, prevents overcooling when an oil cooler is installed.

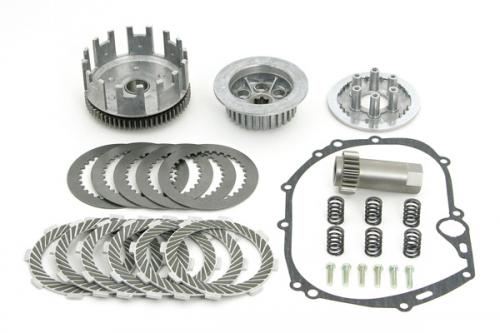

●6-Disc Reinforced Clutch Kit
Compared to the stock clutch (5 discs), this kit has 6 discs, increasing clutch capacity and making it suitable for high-power engines.
A primary drive gear, significantly lighter than the stock one, is included. This reduces the load on the crankshaft and improves throttle response.
By combining with stock springs, the spring set load can be set lower, making clutch operation lighter.
Load adjustment is possible by changing the number and combination of clutch springs.
●Primary Driven Gear Included
The primary driven gear is significantly lighter than the stock one, improving throttle response and allowing 100% of crankshaft rotation to be transmitted to the secondary clutch.
The 6-disc reinforced clutch kit cannot be installed alone.
It must be installed simultaneously with an SP Takegawa special clutch cover.

■Compatible Models
Kawasaki
Z125 PRO (BR125H-A02621～)

■Notes
※Images are for illustration purposes only. They may include products with different sizes and colors.
※Product designs and specifications are subject to change without prior notice. Please be aware.
※To install the thermostat unit, simultaneous installation with an SP Takegawa oil cooler is required.
※This product is made-to-order, so cancellations after ordering are not possible.
※As this is a made-to-order product, it will take time for delivery. Also, please note that the manufacturer may discontinue the product or change specifications without prior notice. Thank you for your understanding.
