Special Clutch Kit (Slipper Clutch Specification) Silver

【Takegawa 02-01-0437 Special Clutch Kit (Slipper Clutch Specification) Silver Ape50 Ape100 XR50/100Motard CRF100F XR100R Custom TAKEGAWA】
■Product Description

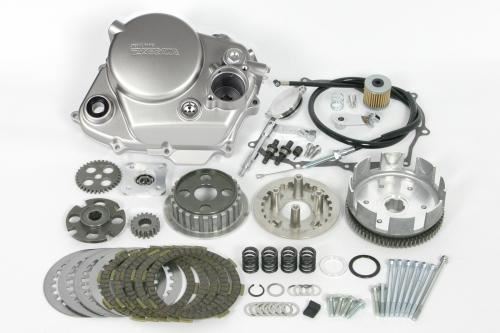

Comes with a die-cast clutch cover and a 5-disc reinforced clutch kit (slipper clutch specification).

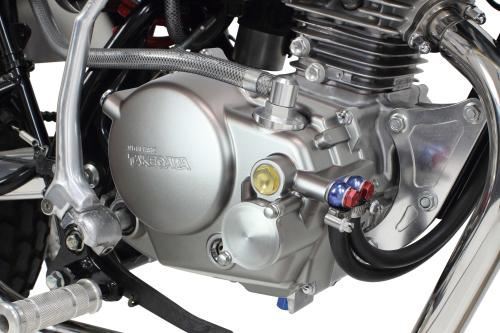

【Aluminum Die-Cast Clutch Cover (Silver Painted Finish)】
Patented structure: Thermostat mounting part and oil line structure
The clutch cover is made of die-cast aluminum with a silver paint finish.
Oil can be directly extracted from the cover body to the oil cooler.
SP Takegawa offers oil cooler kits for die-cast clutch covers.
The oil inspection window uses a durable glass type, which has a proven track record on the Monkey.
The cover body is equipped with an oil filter (element: paper type).
Can be used with normal clutches and SP Takegawa's 5-disc reinforced clutches.
Equipped with a large oil filler cap.
A dedicated clutch cable (900mm) is included.

【5-Disc Reinforced Clutch (Slipper Clutch Specification)】

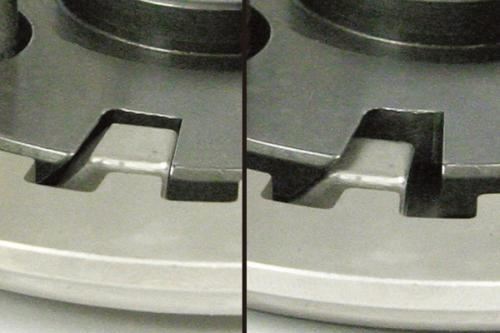

The slipper clutch allows the clutch to slip when sudden engine braking (back torque) occurs, controlling the effectiveness of engine braking. This reduces sudden changes in posture due to engine braking, rear tire hopping, and stress on the engine. Of course, during normal driving, it operates in the same way as conventional special clutches, so the clutch will not slip even with high-power engines.

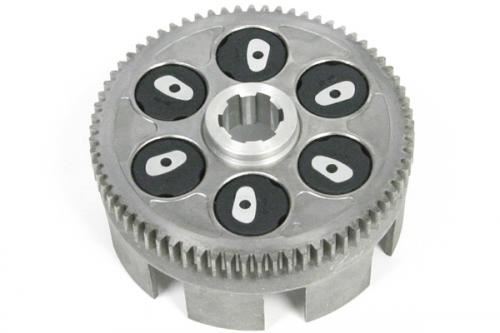

The number of clutch dampers has been changed from 4 to 6, increasing damper capacity.
The oil pump reduction ratio has been changed from 2.187 to 1.833, increasing the oil discharge volume per engine revolution.
The primary reduction ratio has been changed from 4.437 to 3.833, resulting in approximately 16% higher gearing and expanding the range of driven sprocket choices.
The clutch springs use a reinforced type with a 10% increase compared to the Ape100.
Cast iron is cast into the friction disc contact surfaces of the clutch center and pressure plate, improving durability.

■Compatible Models
Ape50 (AC16-1000001~)
Ape50 (FI) (AC16-1600001~/AC18-1000001~)
Ape100 (HC07-1000001~/HC13-1000001~)
XR50 Motard (AD14-1000001~)
XR100 Motard (HD13-1000001~)
CRF100F (HE03-2400001~)
XR100R (HE03-2100001~)

■Specifications
Color: Silver

■Notes
*A slipper clutch cannot completely release back torque. Some back torque will be transmitted to the crankshaft, so avoid sudden downshifts at high RPMs to prevent damage to the valve mechanism.
*The lifter plate, guide pin, and bearing flange bolt are reused from genuine parts.
*Since the primary reduction ratio will change, re-setting the sprocket is necessary.
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications may change without prior notice. Please understand.
