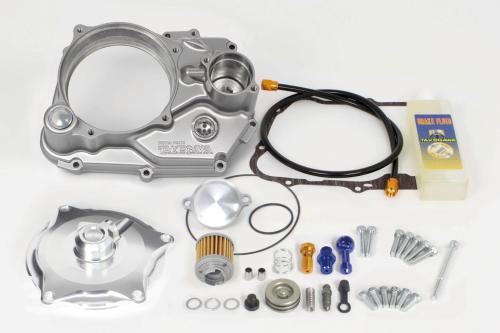

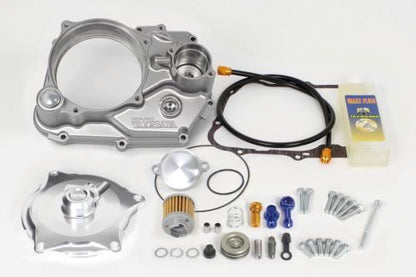

Special Clutch Cover Kit TYPE-R (Wet/Hydraulic) No Master Cylinder Magna 50

[SP Takegawa 02-01-0452 Special Clutch Cover Kit TYPE-R (WET/Hydraulic) No Master Cylinder for Magna 50 Engine Parts Takegawa]
■Product Description
Installation of this product requires simultaneous installation of the Special Clutch Inner Kit TYPE-R (WET).
The master cylinder is not included.
●Applicable Special Clutch Inner Kit TYPE-R (WET)
Part numbers 02-01-0806, 02-01-0804, 02-01-0805

■Detailed Description
●Adopts a shared right crankcase cover
The right crankcase cover is made of die-cast aluminum.
The cover surface is silver painted.
The right crankcase cover is designed to be used with both wet and dry clutches.
It is possible to change to a dry clutch specification after purchasing a wet clutch.
*Specification changes require separate purchase of SP Takegawa designated parts.
●Billet aluminum clutch cover (hydraulic type)
The clutch cover is precisely machined from aluminum and has a silver anodized surface.
In addition, the center of the clutch cover has a HYDRAULIC logo.
A release piston with a diameter of φ33 is used.
●Built-in oil element
Filters impurities such as sludge and metal wear particles in the oil.
By removing impurities from the oil, engine output can be maintained.
The oil element is a highly reliable, cartridge-type paper filter.
●With oil level check window
The oil level can be checked.
Durable glass is used for the engine oil check window.
●Adopts a large oil filler cap
Made of die-cast aluminum with chrome plating.
A larger oil filler port makes oil changes easier.

■Compatible models
HONDA
MAGNA50 (AC13-1000010～)

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware of this.
*Installation of this product requires simultaneous installation of the Special Clutch Inner Kit TYPE-R (WET).
*In the case of the hydraulic type, simultaneous installation with the normal main shaft Special Clutch Inner Kit TYPE-R (WET/Slipper Clutch Specification/02-01-0800) is not possible.
