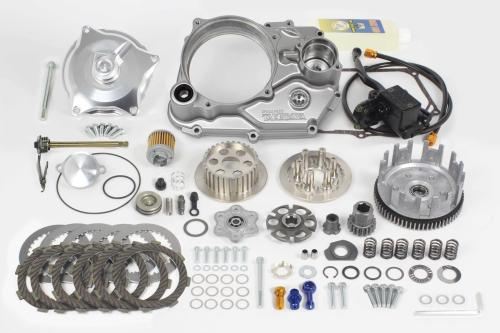

Special Clutch Kit TYPE-R (Wet/Hydraulic) Slipper Clutch Specification for Dax 50

【SP Takegawa 02-01-0465 Special Clutch Kit TYPE-R (WET/Hydraulic) Slipper Clutch Specification for Dax 50 Engine Parts Takegawa】
■Product Description
Features a die-cast aluminum right crankcase cover and a machined aluminum clutch cover.
Special Clutch Kit (WET/Hydraulic) Slipper Clutch Specification

■Detailed Description
●Die-cast aluminum right crankcase cover: Silver painted finish
●Features a common right crankcase cover
Adopts a right crankcase cover shape that can be used for both wet and dry clutches.
Even after purchasing a wet clutch, it is possible to change to a dry clutch specification.
●Machined aluminum clutch cover (hydraulic)
The clutch cover is precisely machined from aluminum and features a silver anodized finish on the surface.
In addition, the HYDRAULIC logo is engraved in the center of the clutch cover.
Adopts a release piston with a diameter of φ33.
●Adopts a large oil filler cap
Die-cast aluminum with chrome plating.
●Oil element
Adopts a cartridge-type paper filter with excellent filtration performance.
●With oil level check window
●Special Clutch Inner Kit TYPE-R (WET/Slipper Specification)
●Clutch unit change
By changing from the normal crankshaft (primary side) to the main shaft of the transmission (secondary side), the burden on the crankshaft is reduced, and the crankshaft axis can be lightened, resulting in a lighter throttle response.
●6-disk specification
Compared to conventional products, by reducing the diameter of rotating parts such as the clutch outer, loss horsepower due to oil diffusion is reduced, responsiveness is further improved, and rotational mass weight is reduced by approximately 12%, efficiently transmitting engine power.
Achieves a 6-disk configuration by adopting 6 friction disks.
This increases the clutch capacity by approximately 20% compared to conventional products, making it suitable for high-power engines.
●Slipper clutch (standard equipment)
Alleviates the sudden engine braking shock caused by downshifting at high RPMs.
This reduces sudden changes in posture, rear wheel hopping, and engine load.
●Slipper clutch structure
A dedicated pressure plate and clutch cam are provided in the clutch section.
The back torque transmitted from the rear wheel is transmitted to the clutch cam, and the cam of the pressure plate and the clutch cam operate, pushing down the pressure plate to create a semi-clutch state, releasing the back torque.
●Clutch outer
Incorporates a rubber damper to reduce shock to gears when the clutch is engaged.
●Die-cast aluminum lifter plate
●Clutch spring
Excellent fatigue resistance and stable clutch feel.

■Compatible Models
HONDA
12V DAX50 (AB26-1000001~)
*Simultaneous installation of SP Takegawa's WET compatible cross mission (5-speed cross mission) is required.

■Notes
*Images are for illustration purposes only. Includes products with different sizes and colors.
*Product design and specifications are subject to change without notice. Please be aware.
*The slipper clutch cannot completely release back torque. Some of it will be transmitted to the crankshaft, so sudden downshifting at high RPMs may lead to engine damage and should be avoided.
*Due to the structure of the slipper clutch, clutch slip will occur when the engine is started, so always use a camshaft with an auto decompression function. (Excluding SP Takegawa's Desmo head)
*Normal mufflers and up mufflers cannot be installed simultaneously.
*For the 12V DAX50, when installing the included clutch master cylinder, the normal clutch lever & holder must be removed, so separate purchase of SP Takegawa's Monkey combination switch (05-09-0028) is required. (Wiring modification required)
*Simultaneous installation of SP Takegawa's WET compatible cross mission (5-speed cross mission) is required.
*This product is made-to-order, so cancellations after ordering are not possible.
*This is a made-to-order product, so it will take some time for delivery. Also, the manufacturer may discontinue the product or change specifications without prior notice. Please be aware.
